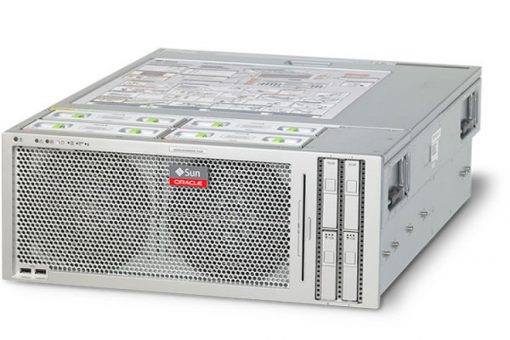

Oracle Sun SPARC Enterprise T5440 Server
Part Number: T5440
Oracle’s Sun SPARC Enterprise T5440 server is a modular, 4 RU system supporting up to four processor/memory modules, each with one UltraSPARC T2 Plus processor running at 1.2, 1.4 or 1.6 GHz and 16 FB-DIMM slots. When fully populated with 8 GB FB-DIMMs, the system provides 128 GB per processor or a system total of 512 GB. There are 8 PCIe slots, two of which are shared with the integrated XAUI/10 Gb Ethernet slots.
Key Features
- Up to 64 FBDIMM Slots
- Up to 8 PCI-express controllers.
- Up to 2 external PCI expansion Boxes with each 2 boats and in each boat 6 PCI slots for PCI-express possible, each boat occupies 1 server internal PCI-e slot for a Link card.
- Total amount of 28 PCI slots.
- Up to 2 XAUI cards for 10Gbit Ethernet, occupies 1 PCI-e slot and 1 onboard 1 Gbit Eth. Port each.
- Redundant components: hard disk drives 2.5”, fans (standard), power supply units and power feeds
- Hot-plug able components: hard disk drives, power supply units and fans
- Monitoring of system operating status in real time on system management console.
- 19-inch rack system (4HU)
