Dual T1/E1 - 2-port - GPIM. PIM for SRX 650. Single PIM Slot.

Part no: SRX-GP-DUAL-T1-E1

Dual T1/E1 – 2-port – GPIM. PIM for SRX 650. Single PIM Slot.

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Dual T1/E1 – 2-port – GPIM. PIM for SRX 650. Single PIM Slot

Part Number: SRX-GP-DUAL-T1-E1

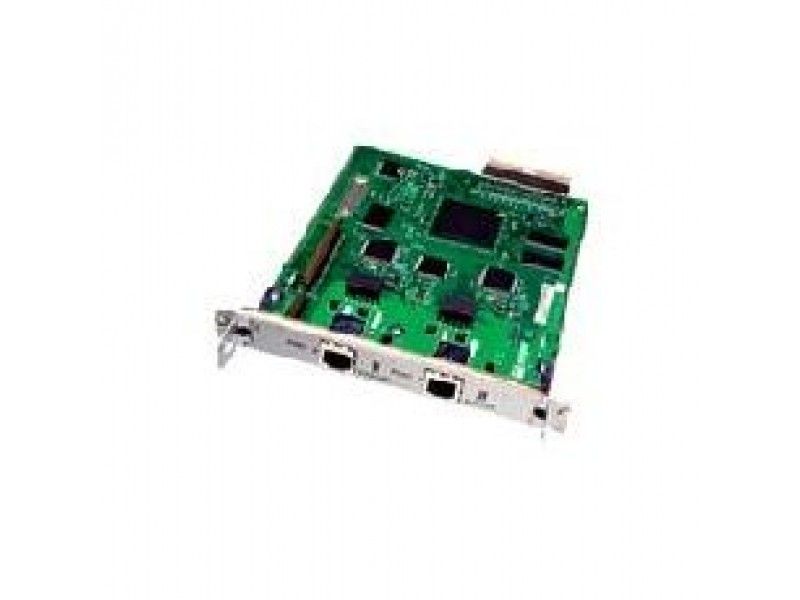

The Dual CT1/E1 GPIM provides the physical connection to T1 or E1 network media types and performs T1 or E1 framing and line-speed signaling. The Dual CT1/E1 GPIM can be plugged into any GPIM slot on the services gateway. Figure 1 shows the Dual CT1/E1 GPIM.

Key Features:

  • Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device
  • 56-Kbps and 64-Kbps operating modes
  • Independent internal and external clocking option
  • Alarm reporting with a 24-hour history maintained
  • Loopback (local and remote) and BERT/PRBS diagnostics
  • Multilink Frame Relay and Multilink PPP support
  • MTU size of 9000 bytes (maximum)
