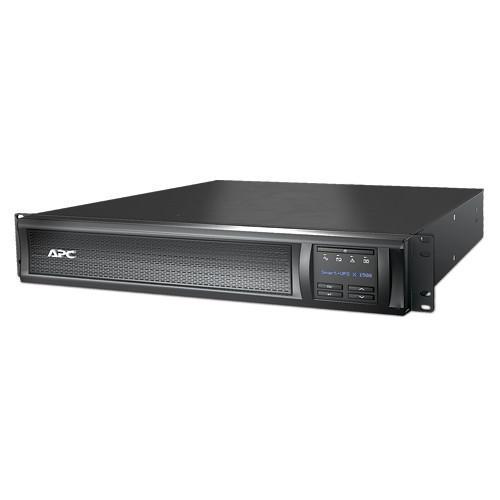

APC SMART UPS (SMX), 1500VA, IEC(8), EXT BATT(0/10), SMART SLOT, LCD, 2U RACK/TWR, 3YR
Part Number: SMX1500RMI2U
Technical Specifications
Output
Max Configurable Power (Watts)
1.2kWatts /Â 1.5kVA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Topology
Line interactive
Waveform type
Sine wave
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 – 302 Adjustable, 160 – 286V
Number of Power Cords
1
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
103Â Watts
Battery Volt-Amp-Hour Capacity
311
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
89MM, 8.9CM
Maximum Width
432MM, 43.2CM
Maximum Depth
490MM, 49.0CM
Net Weight
24.82KG
Shipping weight
30.0KG
Shipping Height
246MM, 24.6CM
Shipping Width
589MM, 58.9CM
Shipping Depth
620MM, 62.0CM
Color
Black
Units per Pallet
8.0
Environmental
Operating Temperature
0 – 45 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
133.0BTU/hr
