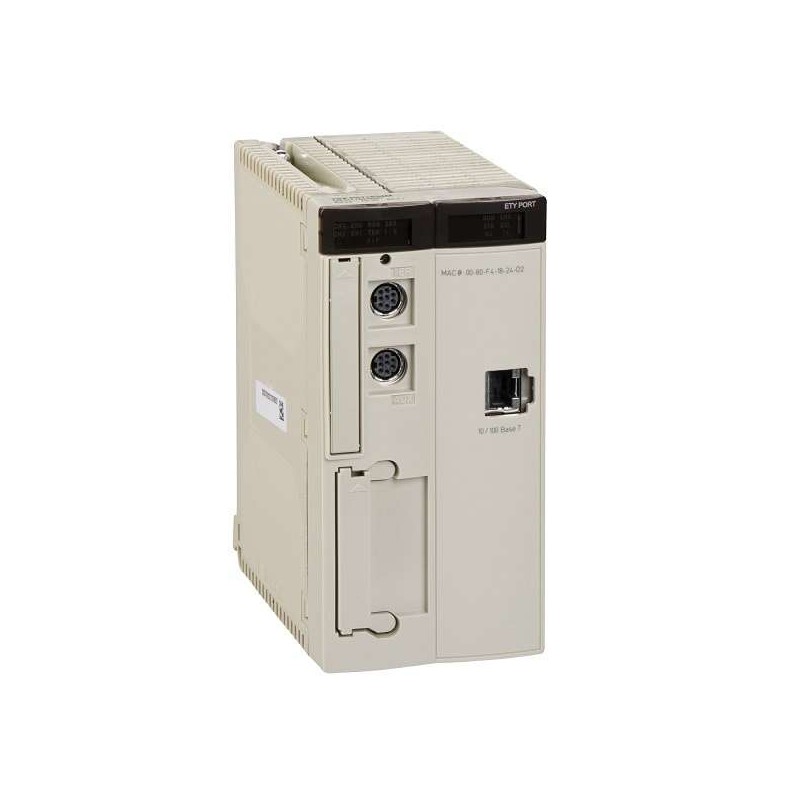

Schneider Modicon Unity Processor TSXP573634M
Part number: TSXP573634M
Features
Software designation: Unity Pro
Concept: Transparent Ready
Number of racks: 16 4/6/8 slots, 8 12 slots
Discrete I/O processor capacity: 1024 I/O
Analogue I/O processor capacity: 128 I/O
Number of application-specific channel: <= 32
Number of process control channel: <= 15 up to 45 simple loops
Port Ethernet: 10BASE-T/100BASE-TX
Memory Description : Internal RAM (with PCMCIA card) 1792 kB program
                  Internal RAM (with PCMCIA card) 192 kB data
                  Internal RAM (without PCMCIA card) 192 kB program and data
                  PCMCIA card 16384 kB additional data storage
System overhead: 0.35 ms fast task, 1 ms master task
Current consumption: 1900 mA 5 V DC
Ambient air temperature for operation : 0…60 °C
Ambient air temperature for storage: -25…70 °C
Relative humidity: 10…95 % without condensation for operation, 5…95 % without condensation for storage
Operating altitude : 0…2000 m
Module format: Double
Product weight: 0.64 kg (1.41 lbs)
Shipping Weight: 2 kg
