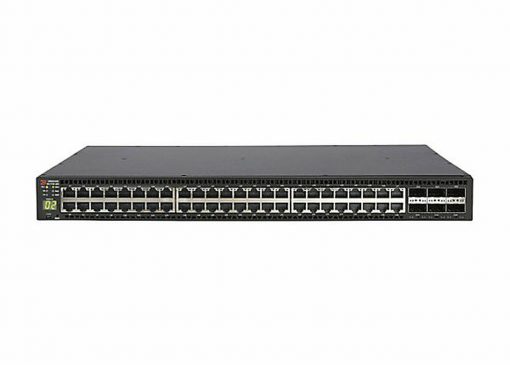

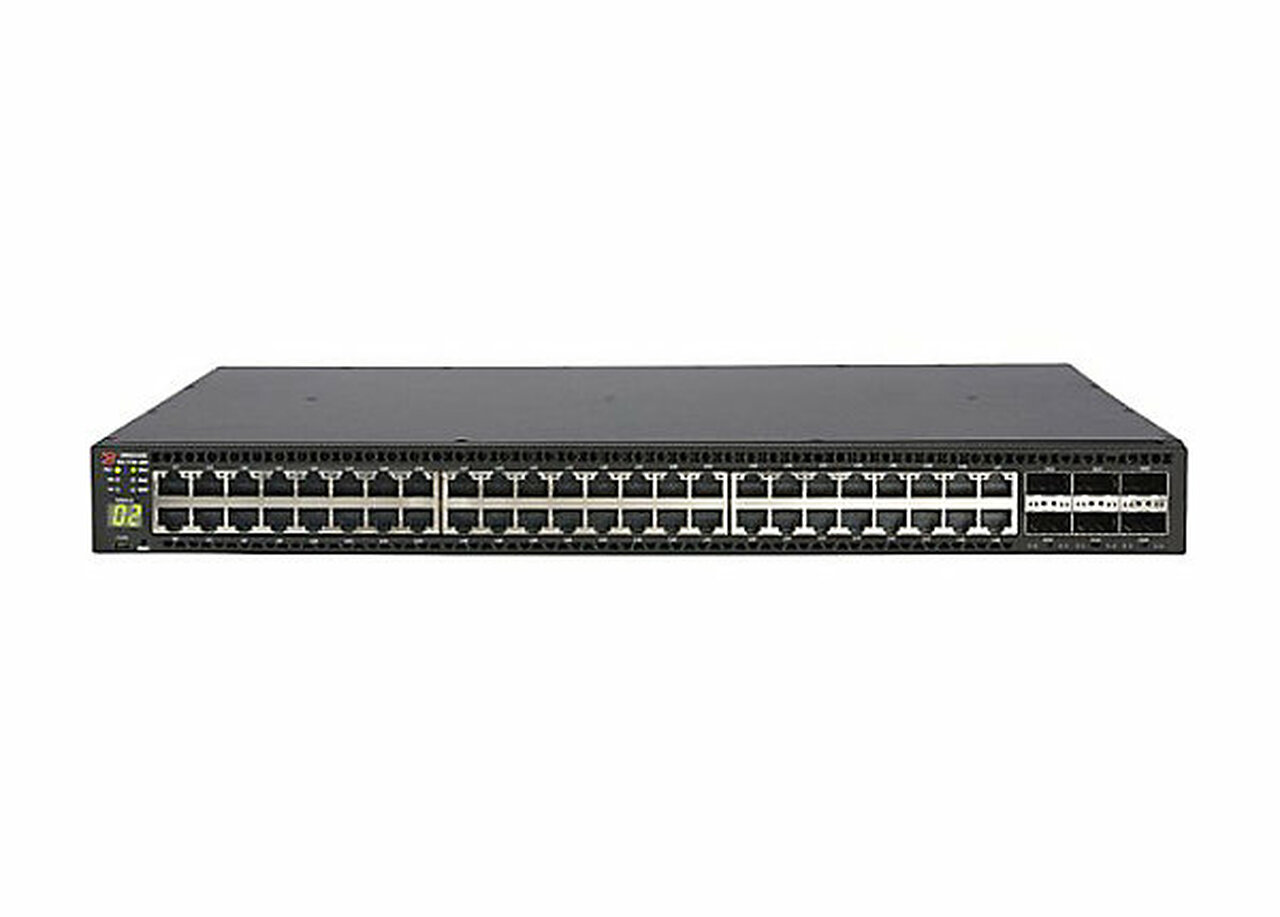

Ruckus ICX Stackable Switch ICX7750-48C

Part no: ICX7750-48C

Ruckus ICX Stackable Switch ICX7750-48C

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Ruckus ICX Stackable Switch ICX7750-48C

Part Number: ICX7750-48C



Today’s enterprise network core and aggregation layers are quickly moving to 10 and 40 Gigabit Ethernet (GbE) switching as enterprises rapidly adopt applications such as High-Definition (HD) video, Bring Your Own Device (BYOD), and Virtual Desktop Infrastructure (VDI), which drive the need for resilient, high-bandwidth access networks. To meet these challenges, campus network solutions must provide better performance, port density, reliability, security, Quality of Service (QoS), and Total Cost of Ownership (TCO). Likewise, data centers are expanding to accommodate data storage growth. Requirements such as application convergence, non-stop operation, scalability, high availability, and power efficiency are placing even greater demands on the network infrastructure.

The Ruckus ICX 7750 switch delivers industry-leading 10/40 GbE port density, advanced high-availability capabilities, and flexible stacking architecture, making it the most robust Ruckus aggregation and core distributed chassis switch offering for enterprise LANs. In addition to rich Layer 3 features, the Ruckus ICX 7750 scales to 12-unit distributed-chassis stacking and serves as the Control Bridge (master brain) for Ruckus Campus Fabric technology.

Part of the Ruckus ICX family of switches for campus LAN and classic Ethernet data center environments, the Ruckus ICX 7750 switch is a 1U high-performance solution that meets the needs of business-sensitive campus deployments and classic data center environments. With a low latency, cut-through, non-blocking architecture, the Ruckus ICX 7750 provides a cost-effective, robust solution for the most demanding deployments.

Deployed as a standalone switch, a stack, or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.



Switch Specs:

  • Ruckus ICX 7750 48-Port 1/10 GbE RJ-45 10GBASE-T Switch with 6×40 GbE QSFP Ports and Modular Interface Slot



ICX Series Switches Specifications:

Feature ICX

7150-Compact

 ICX 7150 ICX 7150

Z-Series

 ICX 7250 ICX 7450 ICX 7650 ICX 7750 ICX 7850
Switching Capacity (max) 120Gbps 180Gbps 304Gbps 256Gbps 336Gbps 1.128Tbps 2.56Tbps 6.4Tbps
1GbE RJ-45 ports 8 or 10 or 12 +2 24 +2 or 48 +2 48 24 or 48 24 or 48 48 48
1GbE SFP ports 2 24 +4 8 8 48 48 48 48
1/2.5GbE RJ-45 ports (max) 8 16
1/2.5/5/10GbE RJ-45 ports (max)

2



24
10GbE SFP+ ports (max) 2 4 8 8 12 24 +4 961 1281
10GbE RJ-45 ports (max) 2 12 24 48
25GbE SFP28 ports 48
40GbE QSFP+ ports (max) 3 2 32
100GbE QSFP28 ports (max) 2 32
PoE Power Budget (max) 240W 740W 1480W 1480W 1480W 1500W
Switches per stack (max) 12 12 12 12 12 12 12 12
Aggregate stack bandwidth 240Gbps 480Gbps 480Gbps 480Gbps 960Gbps 2.4Tbps 5.76Tbps 9.6Tbps

Data Sheet from Ruckus
