Raritan Rack PDU PX3-5523XV Power Configuration

Part number: PDU PX3-5523XV

PX3-5523XV Power Configuration

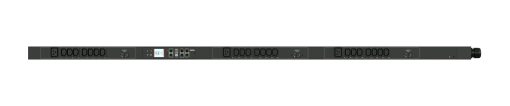

Monitored and switched rack power distribution unit (0U [vertical], 8.6kVA, 24 outlets).

INPUT: 208v (3-phase DELTA), 24a – Hardwired [AC Terminal Block, No Cord];

OUTPUT: 21@ C13, 3@ C19 outlets; on 3@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] – per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM.

Cascading up to 16 PDU’s using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers are labeled on the chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 65mm x 1780mm (2.1in x 2.6in x 70.1in). Max Weight 4.8 kg. Maximum ambient temperature 60C at full load.
