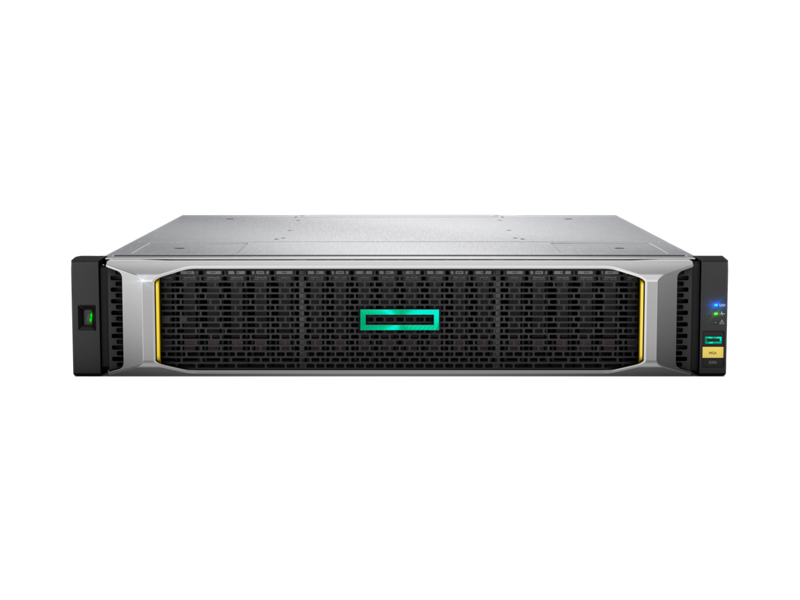

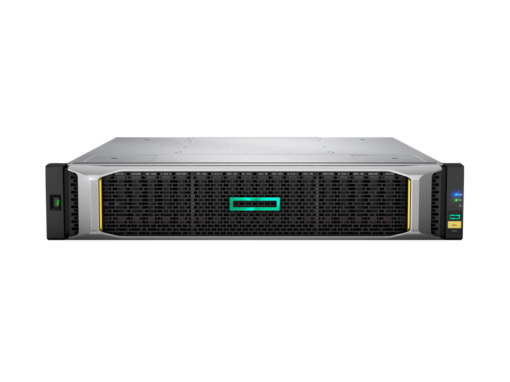

HPE MSA 1050 12Gb SAS DC LFF Storage
Part Number: Q2R20B
Drive 96 SFF or 48 LFF Maximum including expansion, depending on model
Storage Capacity 672 TB maximum including expansion, depending on model
Storage Expansion HPE MSA 2050 SFF Disk Enclosure or HPE MSA 2050 LFF Disk Enclosure
Host Interface 8 Gb Fibre Channel, 4-ports per system or 1 Gb iSCSI, 4-ports per system or 10 Gb iSCSI, 4-ports per system or 12 Gb SAS, 4-ports per system, depending on model
Storage Controller (2) HPE MSA 1050 2-port 8 Gb FC Controllers or (2) HPE MSA 1050 2-port 1 Gb iSCSI Controllers or (2) HPE MSA 1050 2-port 10 Gb iSCSI Controllers or (2) HPE MSA 1050 2-port 12 Gb SAS Controllers, depending on model
SAN Backup Support Yes
Storage Mirroring Support No
Insight Manager Support Yes
Compatible Operating Systems Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, Red Hat Linux, SuSE SLES Linux, VMware, HP-UX. Detailed information available at: http://www.hpe.com/storage/spock
Clustering Support Windows, Linux, HP-UX
Form Factor 2U rack height
Detailed Product Description HPE MSA 1050 large form factor chassis with 12 Gb SAS dual controllers. Only available in EMEA.
Weight (imperial) 38.7 lb
Weight (metric) 17.55 kg
Product Dimensions (imperial) 3.5 x 19.5 x 17.6 in
Product Dimensions (metric) 8.9 x 49.5 x 44.7 cm
