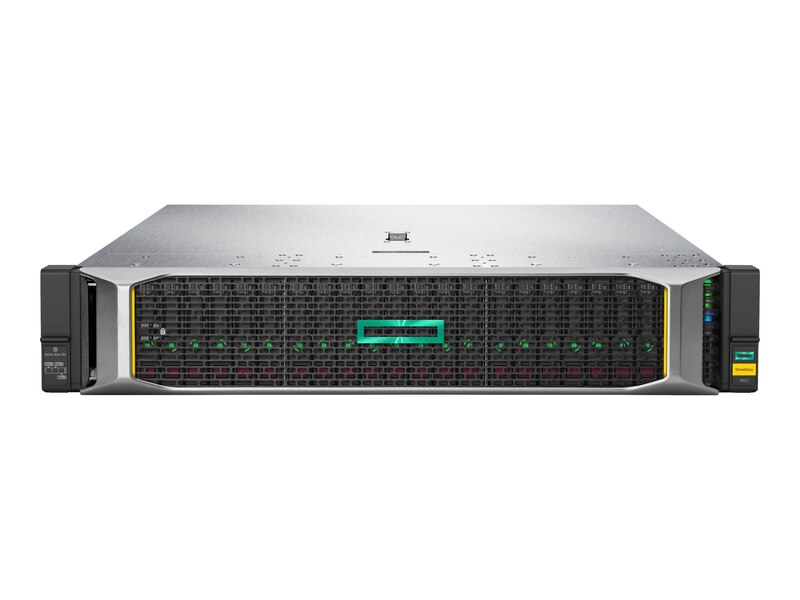

HPE STOREEASY 1860 9.6TB SAS STORAGE
Part Number: Q2P78A
Storage Capacity 9.6 TB raw
Host Interface 4 x 1GbE stardard
Protocol Supported SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
Replication Features Microsoft DFS-R, optional Carbonite Double-Take Availability
Storage Expansion All HPE StoreEasy 1000 Storage systems can be expanded externally using an HPE Smart Array controller with external ports and HPE D3610, D3710, or D6020 disk enclosures.
Compatible Operating Systems Windows Storage Server 2016 Standard Edition Operating System is pre-installed on all HPE StoreEasy 1000 Storage systems. Client operating systems supported include Microsoft® Windows®, Mac OS, Linux®, and Unix.
Management Features HPE StoreEasy management console, HPE iLO5, HPE Smart Storage Administrator, Windows Server Manager
Drive 8 x 1.2TB SAS 12G Enterprise 10K SFF HDDs standard. 16 x SFF (2.5″) hot-plug front drive bays open, 4 x SFF hot-plug rear-chassis drive cage is optional
HD Type Hot plug SATA or SAS, SFF (2.5″) or LFF (3.5″) (depending on model)
Snapshot Support Microsoft Volume Shadow Copy Service (VSS)
Form Factor (fully configured) 2U rackmount (SFF drives)
Weight (imperial) 54 lb maximum (without rear drives)
Weight (metric) 24.5 kg maximum (without rear drives)
Product Dimensions (imperial) 3.44 x 17.54 x 26.75 in (without bezel)
Product Dimensions (metric) 8.73 x 44.54 x 67.94 cm (without bezel)
Detailed Product Description The HPE StoreEasy 1860 9.6TB SAS Storage comes with Microsoft® Windows Storage Server 2016, Standard Edition with HPE StoreEasy Management Console pre-installed, and features an Intel® Xeon-Bronze processor, 16GB of memory, 4 x 1GbE ports, redundant power and fans, a 2U rackmount form factor, and 8 x 1.2TB SFF (2.5″) drives standard. That leaves 16 open bays standard for expansion (with an option to add another 4 x SFF bays with the optional rear cage).
