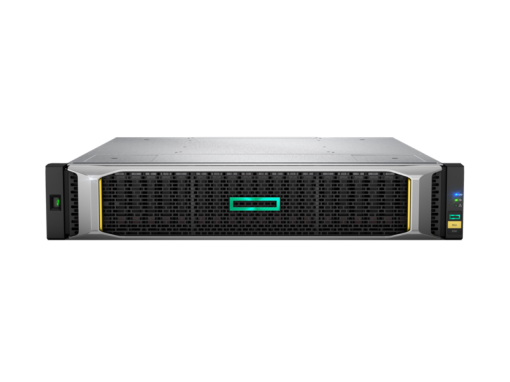

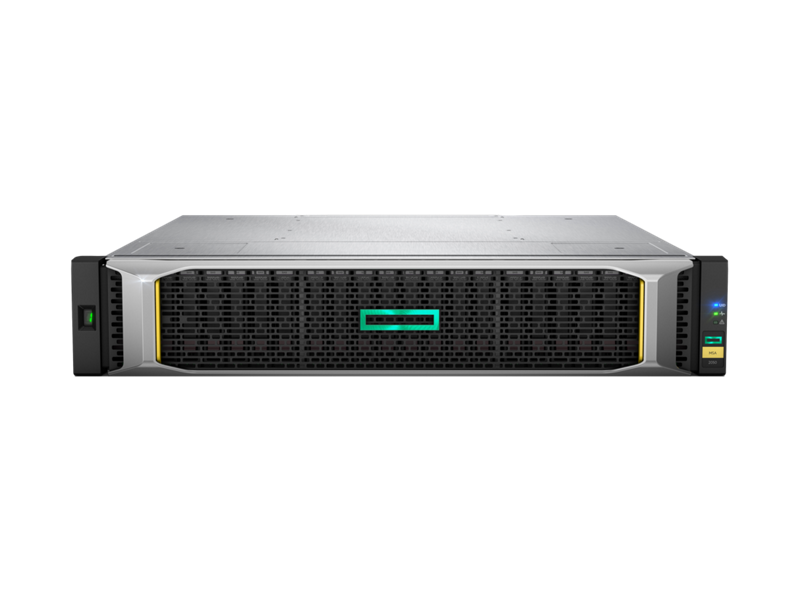

HPE MSA 2052 SAS DC SFF Storage
Part Number: Q1J31B
Drive 192 SFF SAS/MDL SAS/SSD or 96 LFF SAS/MDL SAS/SSD, maximum including expansion, supported, depending on model
Storage Capacity 614 TB SFF or 1342 TB LFF, maximum raw capacity depending on model
Storage Expansion HPE MSA 2050 LFF Disk Enclosure or HPE MSA 2050 SFF Disk Enclosure
Host Interface 16Gb/8Gb Fibre Channel (8) Ports per system,1GbE/10GbE iSCSI (8) Ports per system or 12Gb SAS (8) Ports per system depending on model
Storage Controller (2) HPE MSA 2050 SAN Controllers or (2) HPE MSA 2050 SAS Controllers depending on model
SAN Backup Support Yes
Insight Manager Support Yes
Compatible Operating Systems Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Hyper-V, HP-UX, Red Hat Linux, SUSE Linux, VMware ESXi, OVMS. Detailed information available at: http://www.hpe.com/storage/spock
Clustering Support Windows, Linux, HP-UX
Form Factor2U
Detailed Product Description HPE MSA 2050 SAS storage with dual controllers and supports large form factor drives. Only available in EMEA.
Weight (imperial) 40.6 lb
Weight (metric) 18.4 kg
Product Dimensions (imperial) 3.5 x 22.5 x 17.6 in
Product Dimensions (metric) 8.9 x 49.5 x 44.7 cm
