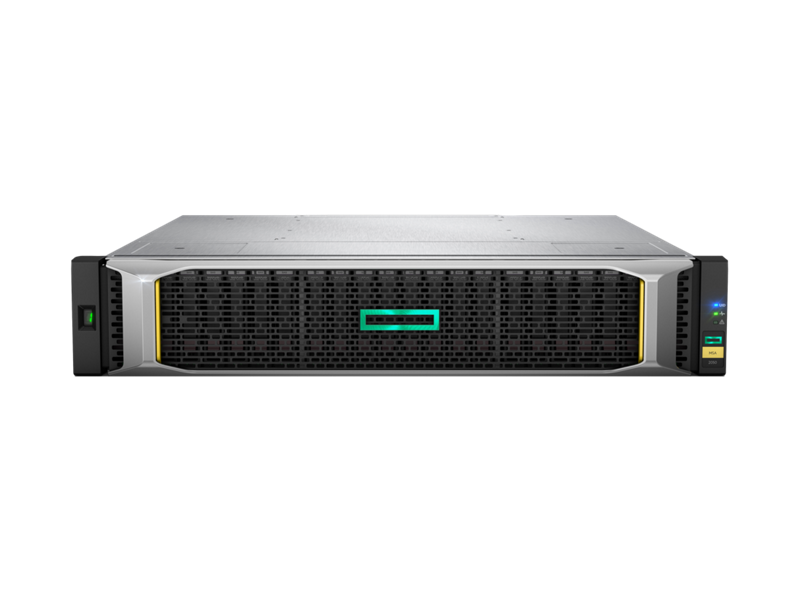

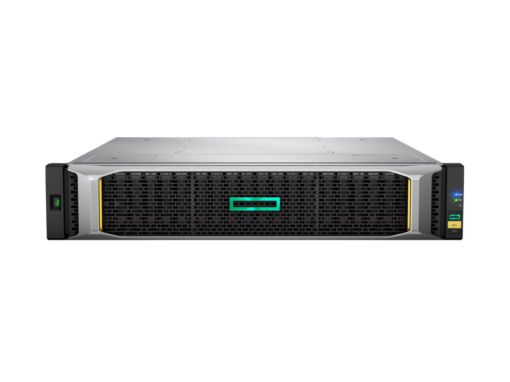

HPE MSA 2050 SAN DC LFF Storage
Part Number: Q1J00B
Drive192 SFF or 96 LFF maximum including expansion, depending on model
Storage Capacity614 TB SFF or 1344 TB LFF, maximum raw capacity, depending on model
Storage ExpansionHPE MSA 2050 LFF Disk Enclosure or HPE MSA 2050 SFF Disk Enclosure or the HPE MSA 2050 SAN DC-Power Carrier Grade SFF Disk Enclosure
Host Interface16 Gb/8 Gb Fibre Channel 8-ports per system or 1 GbE/10GbE iSCSI 8-ports per system or 12 Gb SAS 8-ports per system are supported
Storage Controller(2) HPE MSA 2050 SAN controllers or (2) HPE MSA 2050 SAS controllers, supported, depending on model
SAN Backup SupportYes
Insight Manager SupportYes
Compatible Operating SystemsMicrosoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, HP-UX, Red Hat Linux, SuSE SLES Linux, VMware ESXi, OVMS. Detailed information available at: http://www.hpe.com/storage/spock
Clustering SupportWindows, Linux, HP-UX
Form Factor2U
Detailed Product DescriptionHPE MSA 2050 SAN with dual controllers and large form factor drive support. Only Available in EMEA.
Weight (imperial)40.6 lb
Weight (metric)18.4 kg
Product Dimensions (imperial)3.5 x 22.5 x 17.6 in
Product Dimensions (metric)8.9 x 49.5 x 44.7 cm
