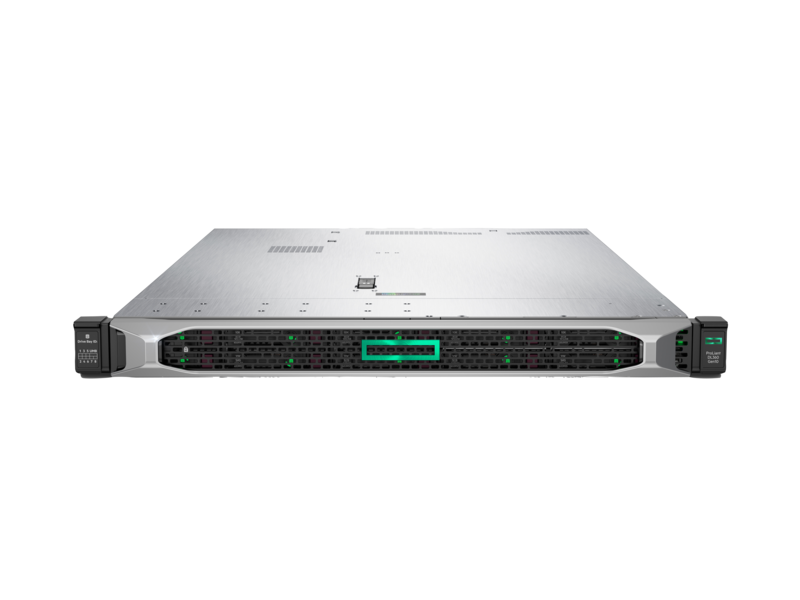

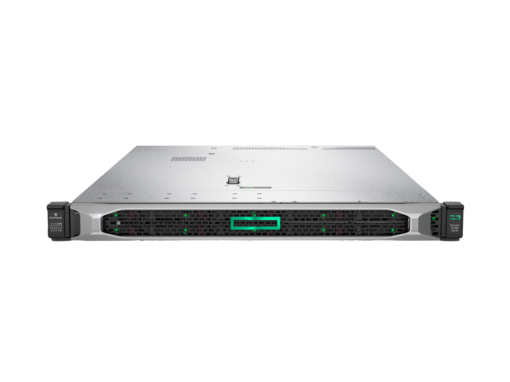

HPE DL360 Gen10 4208 (1/2) 16GB(1/12),SATA/SAS-2.5(0/8),P408i-a,NOCD,RACK,3YR
Part Number: P03630-B21
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.
Brand
HP
Processor brand
Intel CPU
Number of cores
Octa-core Processor
Processor speed
2.1 GHz
Feature
Hot Swappable, Wake-on-LAN
Installed RAM
16 GB RAM
General
Type
Server
Product Form Factor
Rack-mountable – 1U
Built-in Devices
Battery
Server Scalability
2-way
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
Intel Xeon Silver 4208 / 2.1 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Cache Memory
Installed Size
L3 Cache – 11 MB
Cache Per Processor
11 MB
RAM
Installed Size
16 GB / 1.5 TB (max)
Technology
DDR4 SDRAM – Advanced ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
24 (Total) / 23 (empty)
Features
Registered, dual rank, slots 13 – 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture
Configuration Features
1 x 16 GB
RAM Supported
3 TB Load-Reduced – ECC 1.5 TB registered – ECC 192 GB Non-Volatile – ECC
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
2 GB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HPE 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external 8 (total) / 8 (free) x hot-swap 2.5″ SFF
Slots
1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile) 1 (total) / 1 (free) x PCIe 3.0 x16 – full-height 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear) 1 x PoweredUSB 3.0 (1 in front) 1 x HPE iLO – RJ-45 (1 rear) 4 x USB 3.0 (2 rear, 2 internal) 1 x HPE iLO – Type A (1 in front) 8 x SATA-600 / SAS 3.0 1 x VGA (1 rear)
Miscellaneous
Included Accessories
CPU standard heatsink, 5 x standard hot plug fans, SFF Easy install rails
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type
Power supply – hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1
Installed Qty
1
Max Supported Qty
2
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
Operating System / Software
OS Certified
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Software
HPE Server UEFI
Environmental Standards
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Manufacturer Warranty
Service & Support
Limited warranty – parts and labour – 3 years – on-site – response time: next business day
Dimensions & Weight
Width
43.46 cm
Depth
70.7 cm
Height
4.29 cm
Weight
13.04 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 – 90% (non-condensing)
