OnLogic Quad Core Fanless Industrial Edge Device w/ Dual LAN
Part Number: CL210G-11-RS
QUAD-CORE PERFORMANCE
Available as a pre-built, bring-your-own OS system, the CL210G-11-RS is a capable edge device ready to ship with the Intel Quad-Core N4200 processor, 4GB of dual-channel LPDDR4 memory, and secure operation with Intel Platform Trust Technology (PTT).
HARDSHELL FANLESS TECHNOLOGY
Protected from dust, debris, chemical, and moisture ingress, the CL210G-11-RS features the industrial-grade Hardshell Fanless Technology that not only looks good but also provides exceptional durability. Its unique cast aluminum chassis efficiently dissipates heat while allowing for space-saving mounting options such as VESA, wall, and DIN rail mounting.
IMPRESSIVE FUNCTIONALITY

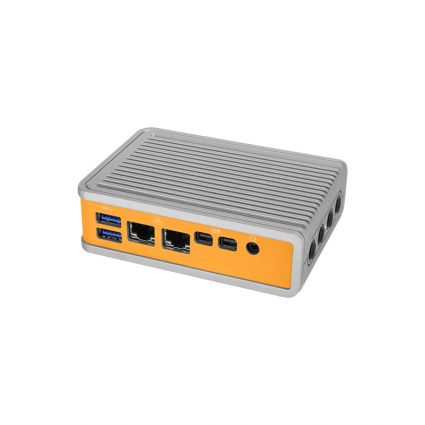

The CL210G-11-RS features impressive functionality packed onto all four sides of its compact fanless chassis. Two USB 3.0, two Gb LAN, two mini DisplayPorts are found on the front, while the bottom includes one USB 2.0 and 9-pin RS-232 box connector COM port. Four antenna holes paired with the system’s two mPCIe slots (one full-height, one half-height) allow for Wi-Fi or 4G LTE Extrovert wireless connectivity (available with the configurable model). An mSATA slot (shared with the full-height mPCIe) or microSD card slot on the back can accommodate additional storage if more than the 64GB of eMMC storage is required.
| SKU | CL210G-11-RS |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Pentium N4200 |
| Processor Speed | 1.1 GHz |
| Max Burst Frequency (GHz) | 2.5 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Apollo Lake |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 505 |
| Memory Type | LPDDR4 |
| Memory Capacity | 4 GB |
| Memory Speed | 2133 MHz |
| Number of Displays Supported | 2 |
| Rear I/O | 1 MicroSD Card slot 1 Power Button 1 Power Indicator LED 1 COM port(RS-232) 1 USB 2.0 port 1 DC input jack (12 V, AC/DC Power Adapter included) |
| Front I/O | 2 USB 3.2 Gen 2 ports 2 Mini DisplayPorts 2 Gb LAN ports 1 Audio Jack (Line out; Mic in) |
| Expansion Options | 1 PCIe Mini Card slot (full height) 1 Half-height mPCIe slot |
| Included Storage | Included 64 GB of Onboard eMMC Storage |
| Storage Options | MicroSD Card mSATA (shared PCIe Mini Card slot) |
| LAN Controller | Realtek RTL8111G |
| Included Power Supply | Power Adapter AC/DC 12 V, 36 W – with Interchangeable Plug |
| System Monitoring | PTT in BIOS Watchdog Timer |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 40°C |
| Dimensions (WxHxD) | 116 mm x 82 mm x 34 mm 4.57″ x 3.23″ x 1.34″ |
| Case Type | Compact Customizable Fanless |
