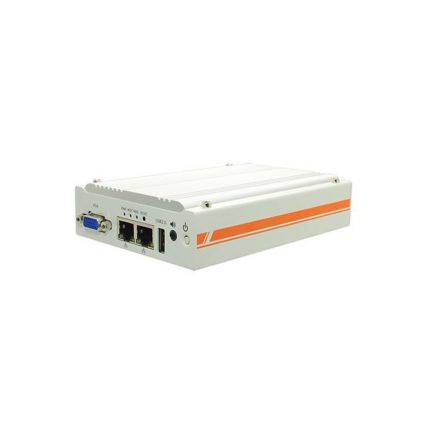

OnLogic Neousys Rugged Ultra Compact Fanless Bay Trail Computer
Part Number: POC-120
EXTREME EFFICIENCY
With Intel’s ultra efficient Atom E3826 Dual-Core processor, the POC-120 offers optimal performance in an energy sipping package. Configured with up to 8 GB of Memory and solid state storage, the POC-120 excels where other computers of its size struggle to perform.
RUGGED FLEXIBILITY
Its wide operating temperature range and super compact fanless and ventless enclosure make the POC-120 a perfect choice for even the most challenging computing applications. With features usually reserved for much larger systems, the POC-120 fits almost anywhere and is virtually immune to the dust and debris that would cripple less rugged systems.
EXPAND YOUR HORIZONS
Despite its compact size, the POC-120 boasts a full complement of I/O. Included are dual Gb Intel LAN, RS-232/422/485 COM, USB 3.0 and dual USB 2.0. Additionally, a secure VGA port ensures monitor compatibility without the worry of accidental disconnection.
| SKU | POC-120 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor | Intel Atom E3826 |
| Processor Speed | 1.46 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 2 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1066 MHz |
| Number of Displays Supported | 1 |
| Rear I/O | 1 USB 3.2 Gen 1 port 1 USB 2.0 port 1 RS-232/422/485 COM port 1 RS-232 COM port 1 8~35 V Terminal block DC input |
| Front I/O | 1 USB 2.0 port 1 VGA port 2 Gb LAN ports 1 Speaker out jack Power button |
| Storage Options | mSATA |
| LAN Controller | Intel I210 GbE |
| Input Voltage | 8~35 VDC |
| Power Input | 2-pin Terminal Block connector |
| Operating Temperature Range | -25 ~ 70°C |
| Operating Humidity | 0% ~ 90% |
| Dimensions (WxHxD) | 105 x 34 x 149 mm 4.13″ x 1.5″ x 5.9″ |
| Case Type | Compact Fanless Ruggedized |
| Case Material | Aluminum Steel |
| Mounting Options | DIN-mount Wall-mount |
