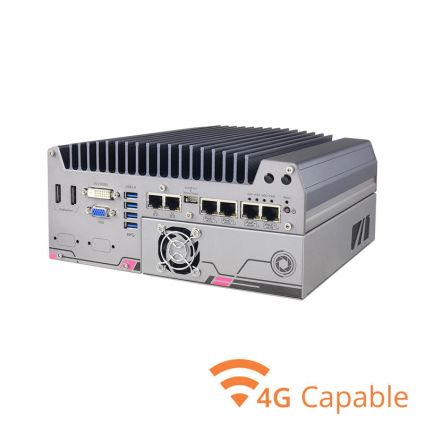

OnLogic Neousys Rugged Intel Skylake Machine Vision Computer w/Optional GPU
Part Number: NUVIS-5306RT
HIGHER PERFORMANCE AT A LOWER COST
The Nuvis-5306RT is a Skylake powered vision controller capable of housing a 35 W Celeron up to a Core i7 processor and up to 32GB of DDR4 memory. Neousys’ unique cassette design allows the Nuvis-5306RT to be equipped with an optional GPU, which can reliably operate at 60°C, even under 100% load. The discrete GPU in the Nuvis-5306RT greatly increases its performance in GPU-accelerated computer vision applications, such as deep-learning machine vision, or advanced defect detection. Neousys’ patented DTIO and NuMCU machine vision technologies help to eliminate the timing issues created by the latency between the operating system and the I/O via a standalone micro-processor and optimized algorithm.
VERSATILITY IN MIND
The Nuvis-5306RT is ready for deployment in any industrial machine vision application thanks to its high shock and vibration tolerances and ability to operate in temperatures ranging from -25°C all the way up to 60°C. Along with the wide temperature range of the Nuvis-5306RT, the system also accepts a wide range of power inputs ranging from 8~35 V. The cassette design allows the sensitive components of the Nuvis-5306RT to remain safe from dust and debris by keeping the PCIe expansion area separate from rest of the system. Expansion options include a full-size mSATA port, two internal SATA ports for 2.5” drives supporting RAID 0/1, and most notably a PCIe x16 slot for a discrete GPU.
DESIGNED FOR THE JOB
Neousys engineered the Nuvis-5306RT to handle any machine vision application. One example of this application-specific design is Neousys’ real-time vision I/O interface, which allows you to integrate a LED lighting controller, digital I/O, encoder input, or a camera trigger. The I/O does not stop there: the Nuvis-5306RT includes 8 USB ports (4 USB 3.0 and 4 USB 2.0), 6 Gbe ports (4 of which offer Power over Ethernet for convenient camera interface), 2 software programmable RS-232/422/485 COM ports and one RS-232 COM port. The system also supports multiple HD displays with 2 DisplayPort connectors, a DIV-I port, and a VGA port. When configured with the optional GPU, the display I/O becomes an HDMI, DVI-I, and another DisplayPort connector.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
SKU | Nuvis-5306RT |
---|---|
Hardware Line | Rugged |
Cooling Type | Fanless |
Processor Socket | LGA1151 |
Processor Generation | Skylake |
Processor Cores | 4 |
Chipset | Intel Q170 |
Graphics/GPU | Intel HD Graphics (CPU dependent) |
Memory Type | DDR4 SO-DIMM (non-ECC) |
Memory Capacity | 32 GB |
Memory Speed | 2133 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 3 |
Rear I/O | 4 USB 2.0 ports 2 RS-232/422/485 COM ports 1 RS-232 COM port 2 audio jacks; mic-in, line-out 1 SIM Card slot 1 Real-time Vision I/O port 1 3-pin terminal block power connector |
Front I/O | 4 USB 3.0 ports 2 DisplayPort connectors 1 DVI-D port 1 VGA port 6 LAN ports (Ports 3-6 are PoE+ ports) Power button Reset button |
Expansion Options | 1 PCIe Mini Card slot (full height) 1 SIM Card socket (external) 1 PCIe x16 slot |
Storage Options | 2.5″ HDD/SSD mSATA |
RAID Support | 0/1 |
LAN Controller | Intel I210 GbE Intel I219 GbE |
System Monitoring | AMT 11.0 Support TPM 2.0 Support |
Input Voltage | 8~35 VDC |
Power Input | 3-pin Terminal Block connector |
Operating Temperature Range | -25 ~ 60°C |
Operating Humidity | 10% ~ 90% (non-condensing) |
Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
Dimensions (WxHxD) | 240 x 111 x 225 mm 9.45″ x 4.37″ x 8.86″ |
Case Type | Fanless Ruggedized |
Case Material | Aluminum Extrusion Steel |
Port Punchouts | 4 Antenna holes |
Mounting Options | Wall-mount (included) |
Included Accessories | Wall mounting brackets |
