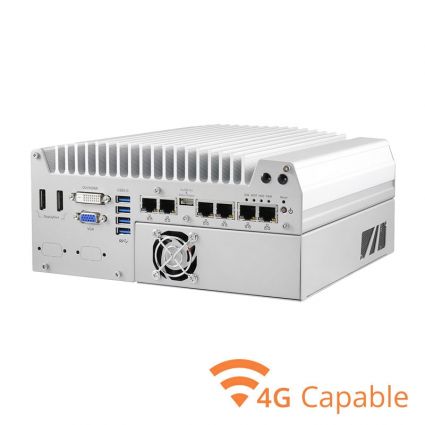

OnLogic Neousys Rugged Intel Skylake Computer with Optional GPU
Part Number: NUVO-5095GC
READY FOR ANYTHING
Integrate your choice of Intel Skylake processor, which offer excellent performance per watt, and tailor the level of computing power to fit your needs. Intel’s 6th generation CPU offers a significant performance increase over previous generations, supporting up to 32 GB of DDR4 memory. With its patented expansion cassette design, the Nuvo-5095GC supports a high-end dedicated GPU, and can handle even the most processing-heavy tasks. With its impressing capabilities, the Nuvo-5095GC excels at use in virtual reality, autonomous vehicles, and AI interfaces; tasks that other rugged mini PCs struggle with because of their lack of a dedicated GPU. The Nuvo-5095GC is also available with optional 4G LTE connectivity, enabling remote network access or fail-over protection.
ADAPTABILITY IS KEY
The Nuvo-5095GC is designed to take on tasks in the most demanding industrial fields with its hardened, fanless enclosure which enables an operating temperature range of -25°C~60°C. The Nuvo-5095GC also features a number of expansion options, with dual internal SATA ports supporting RAID 0/1, dual PCIe Mini card slots and a PCIe 3.0 x8 slot. That PCIe x8 slot supports a high-end GPU and can operate reliably at 60°C, even at 100% GPU load thanks to its patented cassette design which integrates a dedicated fan for optimal airflow. The GPU cassette is isolated, allowing the system to maintain component protection from dust and other airborne particles. The Nuvo-5095GC packs all of these capabilities into its small footprint, measuring just 240 mm x 225 mm x 111 mm.
VERSATILE I/O
The I/O coastline is substantial in the Nuvo-5095GC, providing compatibility with both legacy and modern systems. Offering dual DisplayPort connectors, DVI-D, and VGA, along with any additional outputs provided by the GPU, the Nuvo-5095GC can accommodate a wide range of video output, from static menus or images, all the way up to 4K resolution and multiple simultaneous HD displays. Additionally there are also eight USB ports (four USB 3.0, four USB 2.0) and three COM ports to satisfy virtually any connectivity need. Six Gb LAN ports provide optimal networking performance, including wake-on-LAN support.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
SKU | Nuvo-5095GC |
---|---|
Hardware Line | Rugged |
Cooling Type | Fanless |
Processor Socket | LGA1151 |
Processor Generation | Skylake |
Processor Cores | 2 4 |
Chipset | Intel Q170 |
Graphics/GPU | Intel HD Graphics (CPU dependent) NVIDIA GeForce GTX 1050 (optional) |
Memory Type | DDR4 SO-DIMM (non-ECC) |
Memory Capacity | 32 GB |
Memory Speed | 2133 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 3 |
Rear I/O | 6 GbE LAN ports 4 USB 3.2 Gen 1 ports 2 DisplayPort connectors 1 DVI-D port 1 VGA port Power button Reset button |
Front I/O | 4 USB 2.0 ports 2 RS-232/422/485 COM ports 2 Audio jacks (mic-in / line-out) 1 RS-232 COM port 1 SIM Card slot 1 DVI-D port (with optional GPU) 1 DisplayPort (with optional GPU) 1 HDMI port (with optional GPU) |
Expansion Options | 1 Neousys MezIO Module 1 PCIe Mini Card slot (full height) 1 SIM Card socket (external) 1 PCIe x8 slot |
Storage Options | 2.5″ HDD/SSD mSATA |
RAID Support | 0/1 |
LAN Controller | Intel I210 GbE Intel I219 GbE |
System Monitoring | AMT 11.0 Support TPM 2.0 Support |
Input Voltage | 8~35 VDC |
Power Input | 3-pin Terminal Block connector |
Operating Temperature Range | -25 ~ 60°C |
Operating Humidity | 10% ~ 90% (non-condensing) |
Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
Dimensions (WxHxD) | 240 x 111 x 225 mm 9.45″ x 4.37″ x 8.86″ |
Case Type | Expandable Fanless Ruggedized |
Case Material | Aluminum Extrusion Steel |
Port Punchouts | 4 Antenna holes |
Mounting Options | Wall-mount |
