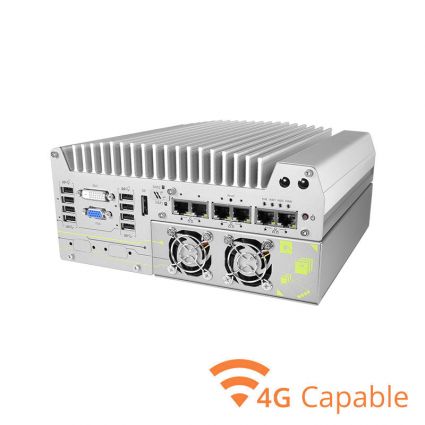

OnLogic Neousys Rugged Intel Coffee Lake Computer with Optional GPU
Part Number: NUVO-7160GC
GPU ACCELERATION
The Nuvo-7160GC features Intel’s 8th Gen Intel Core processing paired with an optional Nvidia GPU for top level performance in a compact package. With a remarkable six cores available on the i5 and i7, support for 2666 MHz DDR4 memory, and UHD integrated graphics, the Nuvo-7160GC gets a significant performance increase over previous generations. The Nuvo-7160GC is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
COOL UNDER PRESSURE
Neousys’ most rugged embedded system to date, the Nuvo-7160GC easily handles the most demanding deployments. Its wide operating temperature range, wide power input range, fanless design that keeps out dust, and sophisticated ESD and power surge protection significantly extend the life of the system. Neousys’ ventilated GPU cassette is able to provide sufficient cooling for an 120W GPU up to 60°C, even at full load.
NO COMPROMISES
The Nuvo-7160GC takes full advantage of its compact size with rich I/O and expansion options. New to this generation are four USB 3.1 Gen 2 ports which offer blazing fast data transfer speeds of up to 10 Gbps, and a PCIe Gen3 x4 M.2 2280 M-key slot for as SSD, Intel® Optane™ memory, or NVMe drive, which” offers read speeds of up to 1800 MB/s. The Nuvo-7160GC has fully featured I/O with six Gb LAN ports, optional 802.3AT PoE+ for ports 3~6, four COM ports, and VGA/DVI/DP ports for triple independent displays. MezIO™ expansion cards are available if your deployment requires additional I/O, such as COM, DIO, USB, or LAN / PoE+, not found standard on the Nuvo-7160GC.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
Hardware Line | Rugged |
---|---|
Cooling Type | Fanless |
Processor Socket | LGA1151 |
Processor Generation | Coffee Lake |
Processor Cores | 2 4 6 |
Chipset | Intel Q370 |
Graphics/GPU | Intel UHD Graphics 630 |
Memory Type | DDR4 SO-DIMM (non-ECC) |
Memory Capacity | 32 GB |
Memory Speed | 2400 MHz 2666 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 3 |
Rear I/O | 2 RS-232/422/485 COM ports 2 RS-232 COM ports 1 3-pin terminal block 1 3-pin terminal block for remote control and PWR LED output 1 MezIO expansion port |
Front I/O | 4 USB 3.2 Gen 2 ports 4 USB 3.2 Gen 1 ports 6 LAN ports (4 optional PoE+ with Nuvo-7160GC-PoE) 1 DisplayPort Connector 1 VGA port 1 DVI-D port 2 Front -Accessible SIM sockets |
Expansion Options | 1 M.2 2242 B-key slot 1 MezIO™ expansion port 1 mPCIe card slot (shared with mSATA) 1 PCIe x16 slot |
Storage Options | 2 SATA 6 Gb/s 1 mSATA card slot (mux with mPCIe) 1 M.2 2280 M-key slot (PCIe Gen3 x4) for NVMe SSD |
RAID Support | 0/1 |
LAN Controller | Intel I210 GbE Intel I219 GbE |
System Monitoring | TPM 2.0 Support AMT 12.0 Support |
Input Voltage | 8~35 VDC |
Power Input | 3-pin Terminal Block connector |
Operating Temperature Range | -25 ~ 50°C (w/ 65W CPU) -25 ~ 70°C (w/ 35W CPU) |
Operating Humidity | 10% ~ 90% (non-condensing) |
Shock Tolerance (Operating) | Operating, MIL-STD-810G, Method 516.6, Procedure I, functional shock=50g |
Vibration Tolerance (Operating) | Operating, MIL-STD-810G, Method 514.6, Category 4 |
Dimensions (WxHxD) | 240 x 111 x 225 mm 9.45″ x 4.37″ x 8.86″ |
Case Type | Compact Fanless Ruggedized |
Case Material | Aluminum Extrusion Steel |
Port Punchouts | 4 Antenna holes |
Mounting Options | Wall-mount (kit included) |
