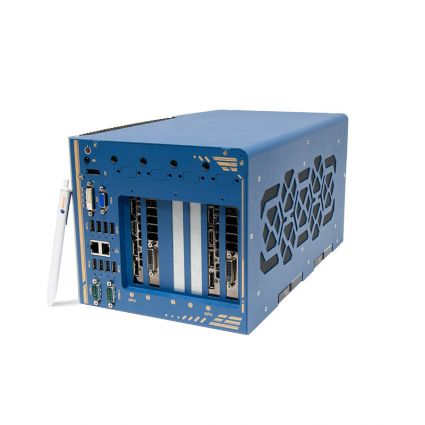

OnLogic Neousys Rugged Computer with Dual GPU Expansion
Part Number: NUVO-8208GC
HIGH-PERFORMANCE DUAL GPU RUGGED COMPUTER
The Nuvo-8208GC is the first rugged dual GPU platform built specifically for edge AI, machine vision, deep learning, and in-vehicle applications. Designed to support two high-end 250W NVIDIA® graphics cards, the system offers up to 28 teraflops in FP32 for GPU-accelerated autonomous driving, machine vision and inspection, and surveillance/security applications. Paired with Intel® Xeon® E or 9th/ 8th-Gen Core™ 8-core/16-thread processors and up to 128 GB ECC or non-ECC DDR4 memory, the Nuvo-8208GC is one of the most powerful edge AI platforms available today.
HIGHLY DURABLE RUGGED DESIGN
Designed for rugged and in-vehicle applications, the Nuvo-8208GC incorporates industrial-grade power, thermal, and mechanical design to ensure reliability in the field. Rated to MIL-STD-810G standards for shock and vibration, the system can operate reliably in temperatures ranging from -25°C ~ 60°C with full CPU and GPU load and uses wall-mounts with vibration dampeners for safe installation. A new power delivery system accepts 8 ~ 35V wide-range DC input to handle the power requirements of dual graphics cards.
RUGGED EDGE CONNECTIVITY
The Nuvo-8208GC integrates dual hot-swappable 2.5″ trays for fast HDD/ SSD replacement and an M.2 2280 NVMe socket for increased disk performance. Front-accessible GbE and USB 3.2 Gen 1 or Gen 2 ports offer screw-lock mechanisms for securing cable connections. In addition to the dual x16 PCIe slots for graphics cards, the Nuvo-8208GC has two additional x8 PCIe slots and one x4 PCIe slot for expansion cards to customize functionality for data collection, analytics and communication applications.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | Nuvo-8208GC |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| Processor Cores | 2 4 6 8 |
| Chipset | Intel C246 |
| Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 620 Intel UHD Graphics 630 Optional GPU |
| Memory Type | DDR4 SO-DIMM (non-ECC) DDR4 SO-DIMM (ECC) |
| Memory Capacity | 128 GB |
| Memory Speed | 2666 MHz |
| Memory Slot Count | 4.000000 |
| Number of Displays Supported | 1 2 3 |
| Rear I/O | Power Button 1 Line-Out 1 DisplayPort 1 DVI-D port 1 VGA port 4 USB 3.2 Gen 1 ports 4 USB 3.2 Gen 2 ports 2 RS-232/422/485 COM ports 8-bit Isolated Digital I/O |
| Front I/O | 2 4-pin Terminal Block connectors (8~35 V) Cooling fan |
| Expansion Options | 2 PCIe x8 slots 2 PCIe Mini Card slots (full height) 1 PCIe x4 slots 2 PCIe x16 slots |
| Storage Options | Dual 2.5″ Hot-swap HDD/SDD 1 M.2 2280 M-key slot (PCIe Gen3 x4) for NVMe SSD 2 mSATA (shared PCIe Mini Card slot) |
| LAN Controller | Intel I210IT GbE Intel I219LM GbE |
| Input Voltage | 8~35 VDC |
| Power Input | 2 4-pin Terminal Block connectors |
| Operating Temperature Range | -25 ~ 60°C |
| Dimensions (WxHxD) | 235 x 185.6 x 360 mm 9.25″ x 7.31″ x 14.17″ |
| Case Type | Automotive Expandable Ruggedized |
| Port Punchouts | 4 Antenna holes |
