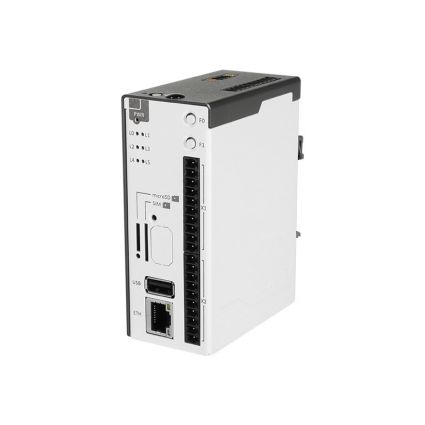

OnLogic Neousys ARM Automation and IoT Gateway
Part Number: IGT-20
TOUGHER THAN MOST
The IGT-20 is an Industrial Internet of Things (IIoT) and automation gateway that is designed for a wide range of wireless gateway applications. The IGT-20 stands out from the competition thanks to its industrial design which includes shock and vibration resistance, a wide power input of 8~25V, and an impressive operating temperature range of -25°C ~ 70°C.
CONNECTIVITY IS KEY
Versatile connectivity options are vital for today’s IIoT gateway applications, and the IGT-20 brings a lot to the table. An onboard 10/100M LAN port enables simple networking, while a full-height mPCIe slot allows you to add your own WiFi module for wireless connectivity. On the other end of the gateway are connections for sensors, buttons, switches and peripherals. Available I/O includes two configurable COM ports (RS-232/422/485), a USB 2.0 port, four built-in isolated digital input channels and four built-in isolated output channels, and an optional CAN bus port. Two available microSDHC card slots, one internal and one external, support cards up to 32 GB.
INCREASED FUNCTIONALITY
The IGT-20 is equipped with the AM3352 1 GHz Sitara ARM processor from Texas Instruments and 1GB of DDR3L SDRAM, making it far more capable than similar System on Module (SoM) products available on the market. Neousys added even more functionality to this Industrial Internet of Things (IIoT) gateway by including six programmable status LEDs and two programmable buttons that allow you to control the IGT-20 directly, without the need for a keyboard or mouse.
| SKU | IGT-20 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor | AM3352 |
| Processor Speed | 1.0 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Cortex-A8 |
| Processor Cores | 2 |
| Memory Type | DDR3L SDRAM |
| Memory Slot Count | 1.000000 |
| Rear I/O | 1 8~25 V Terminal Block (3-pin, DC input) 2 COM ports (RS-232/422/485) Power Button Reset Button |
| Front I/O | 1 Isolated DIO (4-CH isolated DI, 4-CH isolated DO) 2 Buttons (user programmable) 6 LEDs (user programmable) 1 COM port (3-wire, RS-232) 1 LAN port (10/100 Mb) 1 T-flash socket 1 USB 2.0 port 1 SIM socket |
| Storage Options | 2 MicroSDHC cards up to 32 GB (1 external 1 Internal) |
| Input Voltage | 8~25 V |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -25 ~ 70°C |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Dimensions (WxHxD) | 41 x 104 x 77 mm 1.61″ x 4.09″ x 3.03″ |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount |
