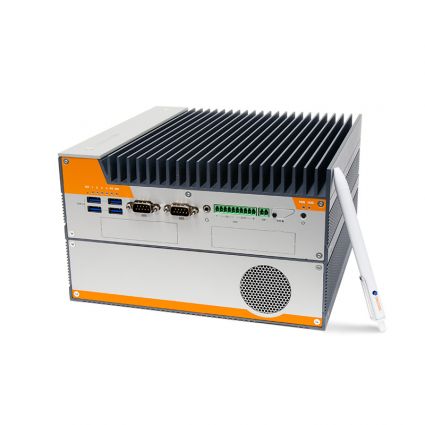

OnLogic Karbon 700 Expanded High-Performance Rugged Edge Computer K700-X2

EXPANDED HIGH-PERFORMANCE RUGGED EDGE COMPUTER

The Karbon 700 Expanded is a rugged edge computer matching high-performance with functional adaptability, allowing it to excel in virtually any application. Blazing fast Hexa-Core Coffee Lake processors and 9th Gen processors (coming soon) push the limit of what’s possible with embedded computing.

The C246 chipset enables Xeon processing and ECC memory for rugged server capability at the edge and allows for real-time machine learning, object detection, and behavior recognition while minimizing the dependency on large-scale data centers for data processing and reducing the cost of data transmission over paid data networks.

RELIABLE RUGGED OPERATION

All the compute power in the world is worthless if the system can’t survive its operating environment, which is why we built Karbon 700 Expanded to meet MIL-STD-810G, UNECE Reg. 10 E-Mark, and EN50155 rolling stock standards to ensure stable and reliable performance for mission-critical applications.*

Our Hardshell Fanless design, medical-grade ESD and interference protections, and solid-state components allow the system to thrive where most computers would fail and features a modular expansion bay to support full-height GPUs and expansion cards while still keeping the motherboard in a ventless chamber. Karbon 700 Expanded can also support wide input voltage of 9-48VDC, 19-48VDC when configured with GPU, PCIe expansions 75W or above and a temperature range of -40-70°C.

*Configuration dependent.

PERFORMANCE MEETS FLEXIBILITY

Karbon 700 Expanded was designed for flexible and reliable performance at the edge. Standard features include integrated CAN bus and 8-bit DIO, 6 USB 3.1 Gen 1 ports, triple Gb LAN and support for triple independent displays via DisplayPort connectors. Connectivity options include 4G LTE, AC Wi-Fi, and gigabit LAN while support for up to four separate storage drives (two high-speed NVMe drives and optional two hot-swap drives) offers ample storage capacity.

Customize the system to your exact application needs with our ModBay™ expansion technology to deploy additional gigabit LAN, PoE support, and dual mPCIe expansion with external SIM support. And with either a single PCIe x16 or dual x8 slots, the Karbon 700 Expanded High-Performance Rugged Edge Computer supports an array of expansion cards up to the RTX 2070 GPU.

CELLULAR CONNECTIVITY

This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
