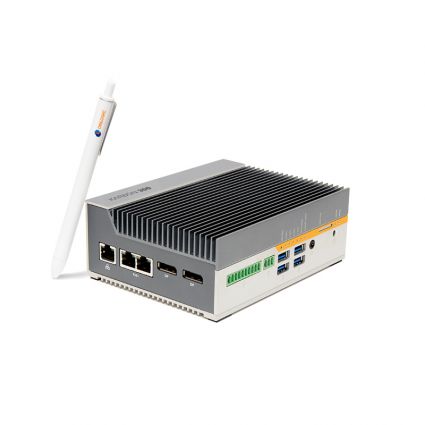

OnLogic Karbon 300 Compact Rugged Computer K300

EFFICIENCY FOR THE EDGE

Configurable with either the Dual-Core E3930 or Quad-Core E3950 processor and up to 8 GB of LPDDR4 memory, Karbon 300 brings efficient Intel Apollo Lake processing to the edge and is configurable with the Movidius Myriad 2 VPU for vision processing applications.

INDUSTRY LEADING DURABILITY

To meet the demands of extreme computing environments, Karbon 300 is tested according to IEC 60068-2-27 & IEC 60068-2-64/ MIL-STD-810 procedures for shock and vibration. Shock and vibration performance also meet the in-vehicle UNECE Reg.10 E-mark and rolling stock EN50155 standards. The ruggedized chassis keeps your hardware protected while onboard TPM, Intel PTT, and secure elements for AWS safeguard your data. A wide power input of 9~36 VDC, operating temperature range of -25°C ~ 70°C, and flexible mounting options let Karbon 300 thrive in any environment.

BUILT FOR THE EDGE

Karbon 300 was built for edge computing with integrated CAN bus, automotive power sensing, and customizable DIO. Tailor-make the system to your specific application with Wi-Fi/Bluetooth, 4G or CAT M1 wireless technologies, Movidius Myriad VPU, and CEC. Three Gb LAN ports with optional PoE+, two COM ports and four USB 3.0 make Karbon 300 a feature-packed rugged computer ready for any application.

CELLULAR CONNECTIVITY

This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
