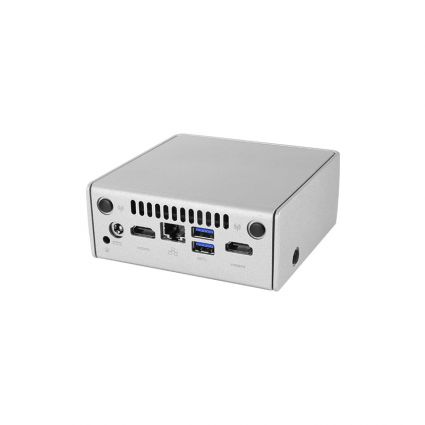

OnLogic Industrial NUC i7/i5/i3 Computer with Dual HDMI
Part Number: NC100-50
REDEFINING THE INDUSTRIAL NUC
The NC100-50 packs 7th generation Intel Core™ performance into an ultra compact, beautifully designed industrial chassis, supporting processors ranging from the i3-7100U up to the Quad-Core i7-8650U. Supporting up to 32 GB of DDR4 memory, the NC100 is a great solution when performance needs are high, but space requirements are tight.
ELEGANTLY INDUSTRIAL
When plastic doesn’t cut it, the NC100-50 is a beautifully designed all-metal alternative to the NUCs you’re used to. With its industrial design, the NC100-50 is right at home anywhere from your desk to the warehouse floor, with flexible mounting options (VESA, DIN, and wall mounting brackets) to support deployment wherever space will allow.
FULLY CAPABLE I/O
Despite its small size, the NC100-50 delivers incredible versatility with its functional I/O, including two HDMI 2.0 ports (one supporting CEC), four USB 3.0 ports, one Gb LAN port, one 22×30 M.2 card slot (key E) for high-speed wireless, and one 22×80 M.2 card slot (key M) for storage. The 22×80 M.2 card slot also features PCIe lanes to support NVMe drives. Equipped with Intel HD Graphics 620, the NC100-50 offers native 4K support, making it a great choice as an advanced industrial workstation, edge device, or the brains behind your next digital signage or kiosk project.
| SKU | NC100-50 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Max Turbo Frequency (GHz) | 3.500000 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Kaby Lake |
| Processor Cores | 2 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 620 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 2 USB 3.2 Gen 1 ports 2 HDMI ports 1 Gb LAN port 1 DC jack |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 Power Button |
| Expansion Options | 1 M.2 slot |
| Storage Options | 1 M.2 NGFF 2280 slot |
| LAN Controller | Intel I219LM GbE |
| Input Voltage | 12~24 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 40°C |
| Dimensions (WxHxD) | 115 x 49 x 113 mm 4.5 x 1.93 x 4.45″ |
| Case Type | Compact |
| Case Material | Cast Aluminum |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
