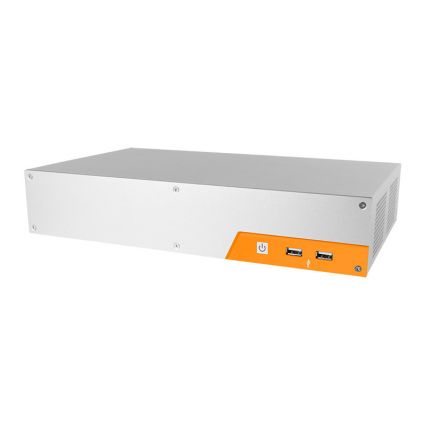

OnLogic Industrial Intel Apollo Lake Mini-ITX Expandable Computer
Part Number: MC610-10
APOLLO LAKE EFFICIENCY
The Apollo Lake generation processors do more with less by delivering powerful performance with low power consumption. Apollo Lake also brings greatly improved graphical performance for taking on complex multimedia tasks. When configured with up to 8GB of dual channel DDR3L 1866MHz memory, the MC610-10 is ready for heavy multitasking workloads. The MC610-10 is available with optional 4G LTE connectivity, enabling remote network access or failover protection.
DURABLE, EXPANDABLE, REMARKABLE
Designed with versatility in mind, the MC610-10 is enclosed in an expandable, scratch-resistant, all-metal enclosure that’s tough enough for commercial applications and sleek enough for office desktops. The cross-case ventilation is optimized for low noise and reliable 24/7 operation. With both a mPCIe slot and a PCIe x1 slot, the MC610-10 enables out-of-the-box customization to adapt to your connectivity need.
INDUSTRY 4.0 WORKSTATION
Ready for Industry 4.0, the MC610-10 features I/O that connects to equipment old and new. Offering legacy support are three native COM ports and optional three RS-232 COM ports available for peripherals and equipment, two PS/2 ports for KVMs, and a VGA port for a display option. Rounding out the I/O are two Gb LAN ports, four USB 3.0 ports, and an HDMI port. Available with a PCIe x1 slot and a full/half height mPCIe slot as well as two M.2 slots (one for an SSD and one for wireless connectivity). The MC610-10 is ready to meet the I/O needs of today’s connected industrial applications.
SKU | MC610-10 |
---|---|
Hardware Line | Fanned Industrial |
Cooling Type | Actively Cooled |
Processor | Intel Celeron N3350 Intel Pentium N4200 |
Processor Speed | 1.1 GHz |
Max Turbo Frequency (GHz) | 2.400000 |
Max Burst Frequency (GHz) | 2.40 (N3350) 2.50 (N4200) |
Processor Socket | Onboard (BGA) |
Processor Generation | Apollo Lake |
Processor Cores | 2 4 |
Chipset | Shared with CPU |
Graphics/GPU | Intel HD Graphics 500 |
Memory Type | DDR3L SO-DIMM (non-ECC) |
Memory Capacity | 8 GB |
Memory Speed | 1866 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 2 |
Rear I/O | 1 VGA port 1 HDMI port 2 Gb LAN ports 4 USB 3.2 Gen 1 ports 3 RS-232/422/485 COM ports 2 Audio Jacks (Mic-in; Line-out) 2 PS/2 ports |
Front I/O | 2 USB 2.0 ports Power Button |
Expansion Options | 1 M.2 E Key 2230 slot 1 PCIe Mini Card slot (full/half height) 1 PCIe x1 slot |
Storage Options | 1 M.2 M Key 2242/2260/2280 slot 1 2.5″ HDD/SSD |
LAN Controller | Realtek RTL8111G |
System Monitoring | Watchdog Timer |
Input Voltage | 12 VDC |
Power Input | DC jack |
Operating Temperature Range | 0 ~ 50°C |
Dimensions (WxHxD) | 334 x 64 x 199.6 mm 13.1″ x 2.5″ x 7.9″ |
Case Type | Compact Customizable Modular |
Case Material | Steel |
Port Punchouts | 3 Antenna holes |
Mounting Options | DIN-mount Wall-mount |
