Onlogic Industrial Fanless Intel Whiskey Lake Embedded NUC With Dual LAN
Part Number: ML100G-52
INDUSTRIAL FANLESS EMBEDDED NUC WITH DUAL LAN
The ML100G-52 features the latest Intel Whiskey Lake embedded processing, packing impressive performance into our series of fanless NUCs coupled with an embedded long life cycle. Available with the Quad-Core multi-threaded Whiskey Lake i5-8365UE or i7-8665UE processor (both available with vPro) and up to 32GB of DDR4 memory, the ML100G-52 provides plenty of power for heavy multitasking workloads and applications its flexible I/O connects to.
FANLESS AND FLEXIBLE
The ML100G-52 industrial fanless NUC is protected by our own Hardshell™ Fanless technology. The fanless and ventless chassis prevents ingress ranging from dust, debris, chemical, and moisture, making the ML100G-52 capable of withstanding the most challenging industrial deployments. Optimized for efficient, reliable cooling, the ML100G-52’s fanless construction and solid-state storage mean no moving parts, extending the lifespan of the system considerably. Versatile mounting capabilities coupled with its small footprint allow the ML100G-52 to fit into many space-constrained applications.
UNIQUE FUNCTIONALITY
The ML100G-52 brings several exciting features to the fanless industrial NUC with dual LAN ports (one available with vPro), fast M.2 storage, and support for triple independent displays making it a truly versatile standout with the ability to fit into niche applications. The system also has flexible configuration options with DIO, Wi-Fi/Bluetooth, and 4G LTE wireless connectivity only furthering its ability for you to make it work for you.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | ML100G-52 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Max Turbo Frequency (GHz) | 4.400000 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Whiskey Lake |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel UHD Graphics 620 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2400 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |

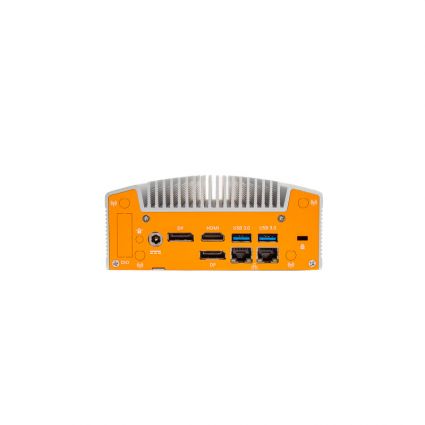

| Rear I/O | 2 DisplayPort connectors 1 HDMI port (Does not support Audio, see notes below.) 2 Gb LAN ports 2 USB 3.2 Gen 2 ports 1 DC jack |
| Front I/O | 1 Audio jack (line-out; mic-in) 2 USB 2.0 ports 1 USB 3.2 Gen 2 port 1 Optional COM port |
| Expansion Options | 1 M.2 E Key 2230 slot |
| Storage Options | 1 M.2 2242/2260 M-key slot (PCIe Gen3 x4) for NVMe SSD |
| LAN Controller | Intel I219LM GbE Realtek RTL8111H |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 142 x 62 x 107 mm 5.6″ x 2.4″ x 4.2″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
