OnLogic Fanless Industrial USFF Edge Device
Part Number: CL200G-10
ECONOMICAL AND EFFICIENT
The CL200G-10 is an ultra small form factor PC designed as an economical drop-in solution. Based on the Linux platform, the system is equipped with the efficient Intel Celeron N3350 processor and 2GB of LPDDR4 memory for stable and reliable operation. With optional 4G LTE connectivity, remote network access and failover protection has never been easier. Your software is protected because the CL200 series features Intel Platform Trust Technology (PTT), an equivalent firmware alternative to TPM that meets TPM 2.0 standards.
SET IT AND FORGET IT
The CL200G-10’s industrial-grade Hardshell Fanless Technology not only looks good, but also protects the system from dust, debris, chemical, and moisture ingress. Its unique cast aluminum chassis efficiently dissipates heat while allowing for space-saving mounting options such as VESA, wall, and DIN rail mounting.
READY TO CONNECT

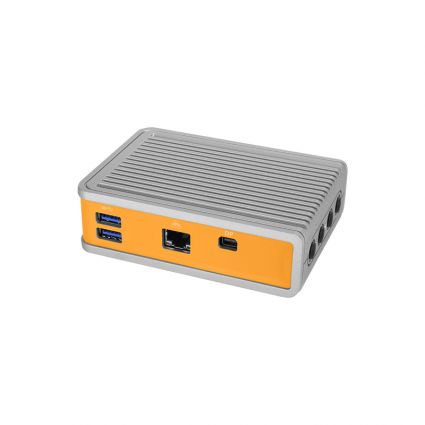

Every side of the system is utilized for I/O. The front and bottom include two USB 3.0 ports, one Gb LAN port, one mini-DisplayPort, one USB 2.0 port, and a 9 pin RS-232 box connector COM port. The top has four antenna holes for Wi-Fi and LTE via the system’s two mPCIe slots (one full-height, one half-height). An mSATA slot (shared with the full-height mPCIe) or microSD card slot on the back can accommodate additional storage if more than the 8 GB of eMMC storage is needed.
SKU | CL200G-10 |
---|---|
Hardware Line | Fanless Industrial |
Cooling Type | Fanless |
Processor | Intel Celeron N3350 |
Processor Speed | 1.1 GHz |
Max Burst Frequency (GHz) | 2.4 |
Processor Socket | Onboard (BGA) |
Processor Generation | Apollo Lake |
Processor Cores | 2 |
Chipset | Shared with CPU |
Graphics/GPU | Intel HD Graphics 500 |
Memory Type | LPDDR4 |
Memory Capacity | 2 GB |
Memory Speed | 2133 MHz |
Number of Displays Supported | 1 |
Rear I/O | 1 MicroSD Card slot 1 Power Button 1 Power Indicator LED 1 COM port (RS-232) 1 USB 2.0 port 1 DC input jack (12 V, AC/DC Power Adapter included) |
Front I/O | 2 USB 3.2 Gen 1 ports 1 mini-DisplayPort 1 Gb LAN port |
Expansion Options | 1 Full size mPCIe slot (shared with mSATA) 1 Half-height mPCIe slot |
Included Storage | Included 8 GB of Onboard eMMC Storage |
Storage Options | MicroSD Card 1 mSATA slot (shared with full size mPCIe slot) |
LAN Controller | Realtek RTL8111G |
Included Power Supply | Power Adapter AC/DC 12 V, 36 W – with Interchangeable Plug |
System Monitoring | PTT in BIOS Watchdog Timer |
Input Voltage | 12 VDC |
Power Input | DC jack |
Operating Temperature Range | 0 ~ 40°C |
Dimensions (WxHxD) | 116 mm x 82 mm x 34 mm 4.57″ x 3.23″ x 1.34″ |
Case Type | Compact Customizable Fanless |
Case Material | Cast Aluminum Steel |
Port Punchouts | 4 Antenna holes |
Mounting Options | DIN-mount VESA-mount Wall-mount |
