OnLogic Fanless Industrial Intel Dawson Canyon NUC Computer
Part Number: ML100G-31
THE DEFINITIVE INDUSTRIAL NUC
The ML100G-31 is our newest addition to the industrial NUC family. The latest Intel Dawson Canyon NUC motherboard is the beating heart in our proven ML100 fanless chassis, making the system as powerful as it is reliable. You can choose between the i3-7100U, i5-7300U, and i7-8650U processors, which match and surpass the performance of the previous generation NUC boards. When combined with up to 32 GB of DDR4 memory the ML100G-31 offers levels of performance normally found in much larger fan-cooled systems that require far more power.
ELEGANTLY INDUSTRIAL
The ML100G-31 wraps your system in OnLogic’s own Hardshell™ Fanless Technology which is optimized for efficient, reliable cooling. Fanless construction, combined with solid state storage, means there are no moving parts and extends the lifespan of your system. Its fanless and ventless design helps reduce dust, debris, chemical, and moisture ingress, making the ML100G-31 capable of withstanding the rigors of even the most challenging industrial deployments. Its small size, in combination with DIN, VESA, or wall mount capabilities, means the ML100G-31 can easily fit into most space constrained applications.
FULLY CAPABLE I/O
Don’t let its diminutive size fool you; the ML100G-31 delivers incredible versatility with an array of functional I/O, including two HDMI 2.0 ports (one supporting CEC), four USB 3.0 ports, and a Gb LAN port. Equipped with Intel HD Graphics 620, the ML100G-31 offers native 4K support, making it a perfect fit as an advanced industrial workstation, edge device, or the brains behind your next digital signage or kiosk project. With 22×30 or 22×80 M.2 slots, allowing for high-speed data storage and networking, and with vPro support when configured with an i5 or i7 processor, the ML100G-31 gives you incredible flexibility in a system that fits in the palm of your hand.
| SKU | ML100G-31 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Kaby Lake |
| Processor Cores | 2 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 620 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |

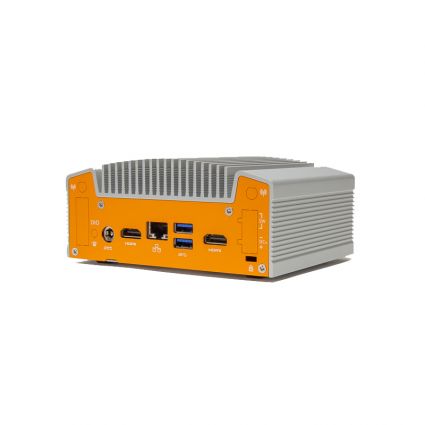

| Rear I/O | 2 USB 3.2 Gen 1 ports 2 HDMI ports 1 Gb LAN port 1 DC jack |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 RS-232 COM port (optional) 1 Power Button |
| Expansion Options | 1 M.2 slot |
| Storage Options | 1 M.2 NGFF 2280 slot |
| LAN Controller | Intel I219LM GbE |
| Input Voltage | 19 VDC |
| Power Input | DC jack |
| Operating Temperature Range | i3/i5/i7 with standard RAM/SSD – 0-35°C i3/i5 with wide temp RAM/SSD – 0-40°C i7 with wide temp RAM/SSD – 0-50°C |
| Dimensions (WxHxD) | 142 x 62 x 111 mm 5.6″ x 2.4″ x 4.2″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
