OnLogic Compact Industrial AMD Ryzen Edge Server
Part Number: MC850-40
COMPACT INDUSTRIAL RYZEN EDGE SERVER
With 2nd Gen Ryzen server processing, the MC850-40 takes full advantage of AMD Infinity Architecture utilizing eight dies for processor cores and one for security and communication outside the processor. This tightly integrated design results in a compact footprint, allowing you to deploy powerful compute and server functionality to your edge application thanks to generous cache sizes and 12 or 16 core processors. A full-height PCIe x16 slot provides GPU, I/O, or networking options to customize the system to your specific requirements.
INDUSTRIAL EDGE SERVER DESIGN
The MC850-40 was designed for high-performance components without sacrificing functionality in a compact industrial form factor. A rear-mounted fan provides an optimized “V” pattern airflow to ensure efficient, full-system cooling over thermally sensitive components enabling for reliable performance even under a heavy computing load. Corrosion-resistant galvanized steel and anodized aluminum construction make the MC850-40 well suited for a wide range of industrial computing installations and makes installation easy with integrated direct plug-in 300W PSU.
EDGE SERVER WORKSTATION FUNCTIONALITY
The MC850-40 is a flexible blend of server and desktop-oriented features and I/O. PCIe Gen 4 lanes provide extremely fast storage options while speedy dual 10Gb LAN ports keep data flowing for responsive decision making, video processing, and data aggregation applications. The system also features an Intelligent Platform Management Interface (IPMI) to enable server monitoring and management.
| SKU | MC850-40 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor | AMD Ryzen™ 5 3600 AMD Ryzen™ 7 3700X AMD Ryzen™ 9 3900X AMD Ryzen™ 9 3950X |
| Processor Speed | Up to 4.2 GHz (5 3600) Up to 4.4 GHz (7 3700X) Up to 4.6 GHz (9 3900X) Up to 4.7 GHz (9 3950X) |
| Processor Socket | AM4 |
| Processor Generation | 3rd Generation |
| Processor Cores | 6 8 12 16 |
| Chipset | AMD Premium X570 |
| Graphics/GPU | ASPEED AST2500 Optional GPU |
| Memory Type | DDR4 SO-DIMM (ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2933 MHz |
| Memory Slot Count | 4.000000 |
| Number of Displays Supported | 1 |
| Rear I/O | 2 USB 3.1 Gen2 port 1 VGA port 1 10Gb LAN ports (X550-AT2) 1 IPMI port |

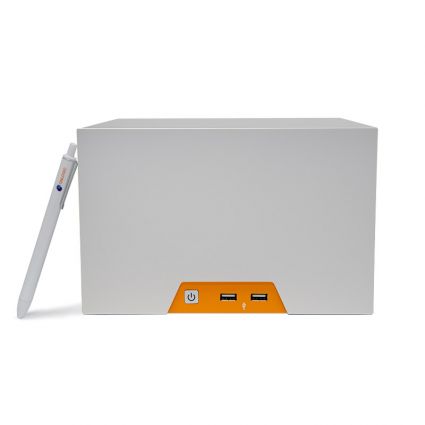

| Front I/O | 2 USB 2.0 ports Power button |
| Expansion Options | 1 PCIe x16 slot |
| Storage Options | 2 SATA III 2.5″ Drives 1 M.2 2280 PCIe x4/SATA slot |
| LAN Controller | 2 10GbE by Intel X550-AT2 |
| Input Voltage | 100 ~ 240 V AC |
| Power Input | C13 ~ C14 Coupler |
| Operating Temperature Range | 0 ~ 35°C |
| Dimensions (WxHxD) | 230 x 146 x 241.5 mm 9.06 x 5.75 x 9.51″ |
| Case Type | Customizable Expandable Modular |
