OnLogic Cincoze Rugged Intel Skylake Fanless Computer with Expansion
Part Number: DS-1101
SKYLAKE POWERHOUSE
Tackle any task with the DS-1101, a compact powerhouse harnessing the power of Intel Skylake desktop processors up to Core i7 and support for up to 64 GB of memory. The Q170 chipset provides support for advanced technology such as vPro and virtualization and optional 4G LTE connectivity enables remote network access for in-vehicle installations or failover protection.
HIGHLY CAPABLE COMPUTING
Designed to operate in the harshest industrial settings where other systems would fail, the DS-1101 can perform in any environment that requires highly capable computing. Encased in a rugged, fanless, ventless, and cableless enclosure, the DS-1101 easily withstands dirt, dust, shock and vibration. A wide temperature range of -40°C to 70°C and input voltage of 9~48 V ensures long-lasting reliability even in the most extreme environments.
EXPANSION POSSIBILITIES
The DS-1101 comes equipped with two Gbe LAN ports and two RS-232/422/485 COM ports for connectivity to a wide range of peripherals and equipment while a 2.5” hot-swap HDD bay provides additional easy to access storage. I/O connectivity is just one of many areas where the DS-1101 shines, equipped with 8 USB ports (Including 6 USB 3.0 ports), in conjunction with two DisplayPort connectors and DVI-I which allows triple HD displays. The DS-1101 offers an incredible array of expansion possibilities including additional COM, DIO, LAN, PoE, and USB, as well as riser card options for PCI and PCIe x16.
CELLULAR CONNECTIVITY

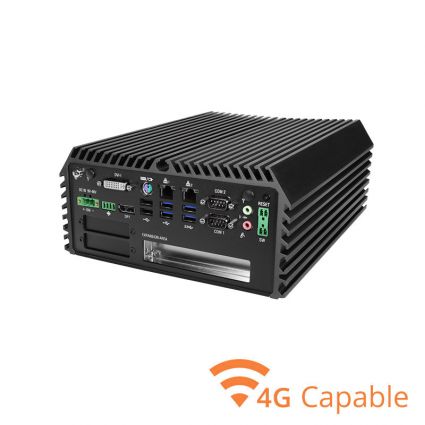

This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | DS-1101 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Processor Cores | 2 4 |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics (CPU dependent) |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 4 USB 3.2 Gen 1 ports 2 USB 2.0 ports 2 RS-232/422/485 COM ports 2 Gb LAN ports 1 DisplayPort 1 DVI-I port 1 PS/2 port for mouse/keyboard 2 Audio jacks; Line-in, Mic-out 1 9~48 V terminal block power connector 1 Remote switch connector 2 Antenna jacks 1 External fan connector 1 Ground pin |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 DisplayPort 1 2.5″ Hot-swap HDD bay 1 SIM Card slot 1 Removable CMOS battery 1 AT/ATX power On/Off switch Power button |
| Expansion Options | 1 PCI slot (optional riser card) 1 PCIe x16 slot (optional riser card) 2 PCIe Mini Card slots (full height) 1 SIM Card socket |
| Storage Options | 2.5″ HDD/SSD 2.5″ Hot-swap HDD/SSD SATA 6 Gb/s 2 mSATA (shared PCIe Mini Card slot) |
| RAID Support | 0/1 |
| LAN Controller | Intel I210AT GbE Intel I219LM GbE |
| System Monitoring | Wake on USB Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Dimensions (WxHxD) | 227 x 108 x 261 mm 8.94″ x 4.25″ x 10.28″ |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount |
