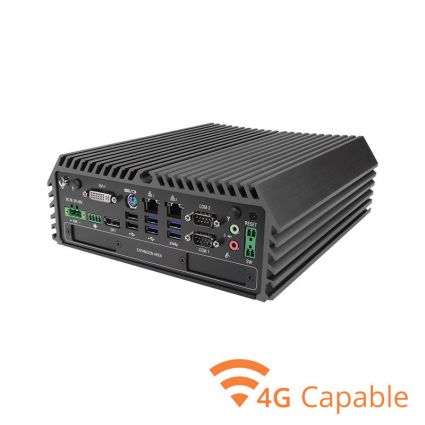

OnLogic Cincoze Rugged Intel Skylake Fanless Computer
Part Number: DS-1100
HIGH-END RUGGED COMPUTING
The exceptionally capable DS-1100 is a compact powerhouse fully utilizing Intel’s powerful Skylake desktop processors, offering up to Core i7 paired with up to 64 GB of memory for high-end rugged computing. The Q170 chipset provides support for advanced technology such as vPro and virtualization while optional 4G LTE connectivity enables remote network access for in-vehicle installations or failover protection.
LONG-LASTING RELIABILITY
Designed to operate in industrial settings where commercial computers would be pushed past their limits, the DS-1100 performs in any environment that requires high-end computing. Encased in a rugged, fanless, ventless, and cableless enclosure, the DS-1100 can withstand anything from dirt, dust, shock and vibration with ease. A temperature range of -40°C to 70°C and an input voltage of 9~48 V give the DS-1100 long-lasting reliability even in the most extreme environments.
INDUSTRIAL I/O
The DS-1100 comes equipped with two Gbe LAN ports and two RS-232/422/485 COM ports for connectivity to a wide range of peripherals and equipment while a 2.5” hot-swap HDD bay provides additional easy to access storage. Just one of many areas where the DS-1100 shines, the system has a plethora of connectivity options with 8 USB ports (Including 6 USB 3.0 ports), in conjunction with two DisplayPort connectors and DVI-I allowing for triple HD displays. The DS-1100 offers an incredible array of expansion possibilities including additional COM, DIO, LAN, PoE, and USB.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | DS-1100 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Processor Cores | 2 4 |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics (CPU dependent) |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 4 USB 3.2 Gen 1 ports 2 USB 2.0 ports 2 RS-232/422/485 COM ports 2 Gb LAN ports 1 DisplayPort 1 DVI-I port 1 PS/2 port for mouse/keyboard 2 Audio jacks; Line-in, Mic-out 1 9~48 V terminal block power connector 1 Remote switch connector 2 Antenna jacks 1 External fan connector 1 Ground pin |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 DisplayPort 1 2.5″ Hot-swap HDD bay 1 SIM Card slot 1 Removable CMOS battery 1 AT/ATX power On/Off switch Power button |
| Expansion Options | 2 PCIe Mini Card slots (full height) 1 SIM Card socket |
| Storage Options | 2.5″ HDD/SSD 2.5″ Hot-swap HDD/SSD SATA 6 Gb/s 2 mSATA (shared PCIe Mini Card slot) |
| RAID Support | 0/1 |
| LAN Controller | Intel I210AT GbE Intel I219LM GbE |
| System Monitoring | Wake on USB Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Dimensions (WxHxD) | 227 x 88 x 261 mm 8.94″ x 3.46″ x 10.28″ |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount |
