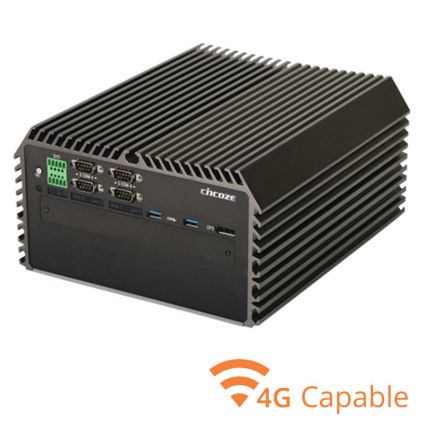

OnLogic Cincoze Rugged Intel Haswell Computer with Dual Expansion
Part Number: DS-1002
HIGH PERFORMANCE, SMALL FOOTPRINT
No task is too demanding for the DS-1000 series. With Intel Haswell desktop processing at its heart, the DS-1002 provides unprecedented performance for a compact, ruggedized system. Supporting processors including Intel’s quad-core i7, all of this power is harnessed by the Q87 chipset, which offers support for advanced features including Intel vPro and virtualization technology, and can accommodate up to 16 GB of RAM. The DS-1002 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
READY FOR RUGGED USE
No environment is too harsh for this PC. The DS-1002 is designed to withstand the rigors of today’s toughest industrial applications, thriving in locations where commercial desktops fail. Encased in a rugged, fully fanless and ventless enclosure, the DS-1002 is shielded from dirt and debris, and features an operating temperature range of -10°C to 60°C. Through cable-less design, this system maximizes resistance to shock and vibration, ensuring optimal uptime.
I/O FOR ALL
I/O is a huge strength for the DS-1002, which comes equipped with 8 USB ports (including 4 USB 3.0 ports), as well as two DisplayPort connectors and DVI-I which enable triple independent HD displays. Industrial clients will welcome the two Gb LAN ports and 6 RS-232/422/485 COM ports. A 2.5″ hot-swap HDD bay and CFast slot are also included, along with a SIM card slot and removable CMOS battery. All of these features, combined with dual expansion bays with support for PCI or PCIe cards, make the DS-1002 highly customizable to fit nearly any application.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | DS-1002 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1150 |
| Processor Generation | Haswell |
| Processor Cores | 2 4 |
| Chipset | Intel Q87 |
| Graphics/GPU | Intel 4th Generation HD Graphics |
| Memory Type | DDR3 SO-DIMM (non-ECC) |
| Memory Capacity | 16 GB |
| Memory Speed | 1600 MHz 1333 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 2 USB 3.2 Gen 1 ports 4 USB 2.0 ports 2 RS-232/422/485 COM ports 2 Gb LAN ports 1 DisplayPort 1 DVI-I port 1 PS/2 port for mouse/keyboard 2 Audio jacks; Line-in, Mic-out 1 9~48 V terminal block power connector 1 Remote switch connector 2 Antenna jacks 1 External fan connector 1 Ground pin |
| Front I/O | 2 USB 3.0 ports 4 RS-232/422/485 COM ports 1 8-bit DIO port 1 DisplayPort 1 2.5″ Hot-swap HDD bay 1 CFast slot 1 SIM Card slot 1 Removable CMOS battery Power button |
| Expansion Options | 1 Cincoze Module slot 1 PCIe x16 slot 1 PCIe Mini Card (full height) |
| Storage Options | 2.5″ HDD/SSD 2.5″ Hot-swap HDD/SSD mSATA |
| LAN Controller | Intel 82583V PCIe GbE Intel I217LM GbE |
| System Monitoring | Wake on LAN Wake on USB Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -10 ~ 60°C |
| Operating Humidity | 10% ~ 95% |
| Dimensions (WxHxD) | 227 x 126 x 261 mm 8.93″ x 4.96″ x 10.27″ |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount (kit included) |
