OnLogic Cincoze Rugged Intel Coffee Lake Fanless Computer with Expansion
Part Number: DS-1202
UNPRECEDENTED PERFORMANCE
The DS-1202 is a compact powerhouse harnessing the power of Intel’s 8th Generation Coffee Lake processors ranging from Dual-Core Celeron up to Hexa-Core i7 and support for up to 64 GB of 2666 MHz memory. The DS-1202 also features smart technology including vPro, virtualization, and hyperthreading, as well as optional 4G LTE connectivity, enabling remote network access or failover protection.
READY FOR ANYTHING
The DS-1202 proves that less can be more with its fanless, jumper-less, and cable-less design that protects and extends the life of the system by keeping out harmful contaminants and making the system resistant to shock and vibration. A wide operating temperature range of -40°C to 70°C, as well as a wide power input of 9~48 volts, helps the DS-1202 to be prepared for environments ranging from the factory floor to the inside of vehicles.
EXCEPTIONAL EXPANSION
Eight USB ports (including 4 USB 3.0 and 2 USB 3.1 ports) in combination with two RS-232/422/485 and PS/2 ports ensures the DS-1202 has connectivity to modern and legacy peripherals alike. Triple independent displays can be achieved with two DisplayPort and one DVI-I port, while two Gb LAN offers the network connectivity that many rugged deployments demand. Setting the DS-1202 apart are its dual PCI/PCIe expansion slots (with optional riser card) capable of accommodating a GTX 1050 or other expansion cards. Rounding out the system’s flexibility is an externally accessible 2.5” drive, I/O expansion via Cincoze’s CMI expansion modules, and mPCIe expansion with support for an M.2 slot supporting PCIe x4 NVMe SSD.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
Hardware Line | Rugged |
---|---|
Cooling Type | Fanless |
Processor Socket | LGA1151 |
Processor Generation | Coffee Lake |
Processor Cores | 2 4 6 |
Chipset | Intel Q370 |
Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 630 |
Memory Type | DDR4 SO-DIMM (non-ECC) |
Memory Capacity | 64 GB |
Memory Speed | 2666 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 3 |

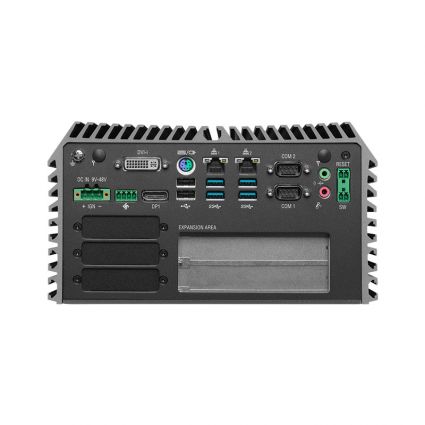

Rear I/O | 2 Gb LAN ports 2 COM ports 4 USB 3.2 Gen 1 ports 2 USB 3.2 Gen 1 ports 1 DisplayPort connector 1 DVI-I port 1 3-pin terminal block 2 Audio jacks (mic in, line-out) 1 Remote Power On/Off connector, (2-pin terminal block) 1 External fan connector (4-pin terminal block) 1 PS/2 port |
Front I/O | 2 USB 3.2 Gen 2 ports 1 DisplayPort connector |
Expansion Options | 2 Cincoze Modular I/O slots 3 PCIe Mini Cards (full-height shared with mSATA) 2 SIM card sockets (external) |
Storage Options | 2.5″ HDD/SDD (Externally Accessible) 2.5″ HDD/SSD 3 mSATA slots (Shared by mPCIe) 1 M.2 2280 PCIe x4/SATA slot |
System Monitoring | Watchdog Timer |
Input Voltage | 9~48 VDC |
Power Input | 3-pin Terminal Block connector |
Operating Temperature Range | -40 ~ 70°C |
Operating Humidity | 10% – 95% (non-condensing) |
Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
Dimensions (WxHxD) | 227 x 128 x 261 mm 8.94 x 5.04″ x 10.28″ |
Case Type | Automotive Expandable Fanless Modular Ruggedized |
Case Material | Aluminum Extrusion |
Port Punchouts | 2 Antenna holes |
Mounting Options | Wall-mount |
