OnLogic Cincoze Rugged Apollo Lake Ultra Compact Fanless Computer
Part Number: DA-1100
EFFICIENT APOLLO LAKE PERFORMANCE
Paired with the Celeron N3350 Dual-Core or Pentium N4200 Quad-Core CPUs and up to 8 GB of DDR3L memory, the DA-1100 offers efficient performance that makes it as ideal as an IoT edge device, IoT gateway, or for use in embedded automation. With enough video horsepower to drive three independent displays and optional 4G LTE connectivity, enabling remote network access or failover protection, the DA-1100 is featured packed.
LONG-TERM SYSTEM RELIABILITY
The DA-1100 is enclosed in a fanless, ventless, and compact case that protects against dust, dirt, and vibration. The fan is removed as a common failure point to improve long-term system reliability and can be configured with wide-temp memory and an SSD to create a fully solid state system able to operate in -40°C to 70°C temperatures and succeed in harsh environments.
HIGHLY VERSATILE, EASILY CONFIGURED
Small in size but highly versatile, the DA-1100 can be easily configured to fit your application. A mPCIe slot allows you to choose between 4G or Wi-Fi connectivity, while the mSATA and 2.5” SATA allows you to have over 4TB of storage. For additional expansion beyond its two Gb LAN ports, two COM ports, and four USB ports (3 of which are USB 3.0), Cincoze’s CMI modules offer DIO, HDMI, and additional LAN ports.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| Hardware Line | Rugged |
|---|---|
| Cooling Type | Fanless |
| Processor | Intel Celeron N3350 Intel Pentium N4200 |
| Processor Speed | 1.1 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Apollo Lake |
| Processor Cores | 2 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 500 Intel HD Graphics 505 |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1866 MHz |
| Memory Slot Count | 1.000000 |
| Number of Displays Supported | 3 (When configured with a CMI module) |

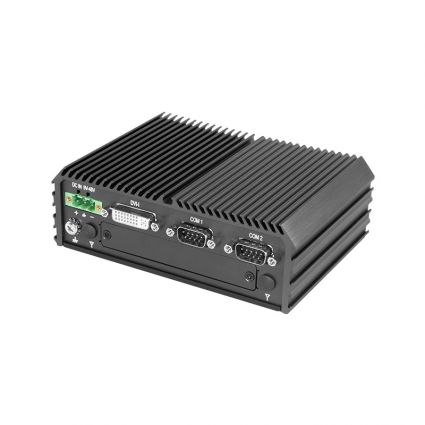

| Rear I/O | 2 Antenna Holes 1 DVI-I Port 2 COM Ports (DB9/RS232/422/485) 1 3-pin Terminal Block Input (9~48V) |
| Front I/O | 2 Gb LAN 4 USB 3.2 Gen 1 ports 1 USB 2.0 port 1 Mic-In 1 Line-Out Power Button Remote Power On/Off Connector (2-pin Terminal Block) |
| Expansion Options | 1 Cincoze Modular I/O slots 1 SIM Card socket (external) 2 Full size mPCIe socket (shared with mSATA) |
| Storage Options | mSATA (full-height) 2.5″ HDD/SSD |
| LAN Controller | Intel I210AT GbE |
| System Monitoring | Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
| Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
| Dimensions (WxHxD) | 150 x 52.3 x 105 mm 5.91″ x 2.06″ x 4.13″ |
| Case Type | Automotive Compact Fanless Modular Ruggedized |
| Case Material | Aluminum Extrusion |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
