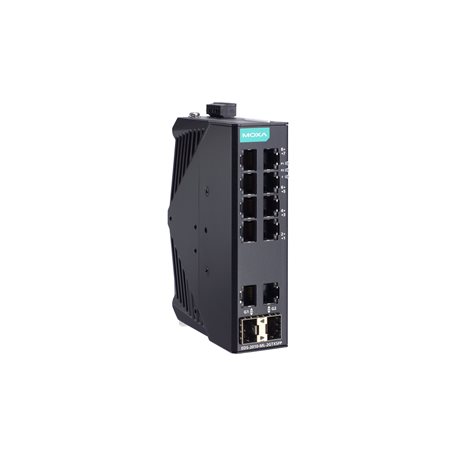

MOXA Unmanaged Ethernet Switch EDS-2010-ML-2GTXSFP
Part Number: EDS-2010-ML-2GTXSFP
EDS-2010-ML Series Features and Benefits
2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C operating temperature range (-T models)
The EDS-2010-ML series of industrial Ethernet switches have eight 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2010-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.
The EDS-2010-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2010-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2010-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
2
Auto negotiation speed
Auto MDI/MDI-X connection
Full/Half duplex mode
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
DIP Switch Configuration
Ethernet Interface
Quality of Service (QoS), Broadcast storm protection, Port break alarm
Input/Output Interface
Alarm Contact Channels
Relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
MAC Table Size
8 K
Packet Buffer Size
4 Mbits
Processing Type
Store and Forward
Power Parameters
Connection
1 removable 6-contact terminal block(s)
Input Current
0.251 A @ 24 VDC
Input Voltage
12/24/48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
