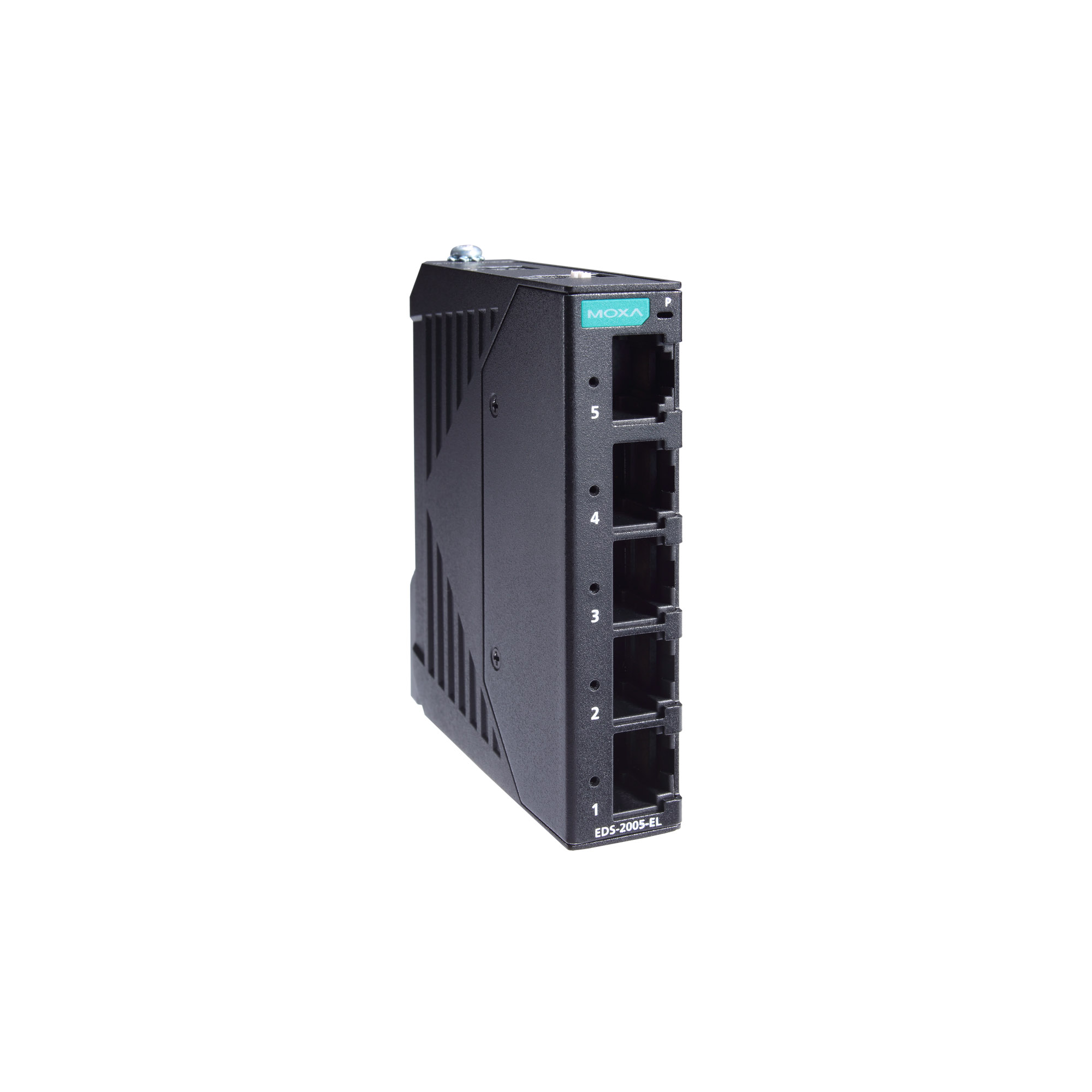

MOXA Unmanaged Ethernet Switch EDS-2005-EL-T
Part Number: EDS-2005-EL-T
The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
5
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Standards
IEEE 802.3 for 10BaseT
IEEE 802.1p for Class of Service
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
Switch Properties
Processing Type
Store and Forward
MAC Table Size
8 K
Packet Buffer Size
4 Mbits
