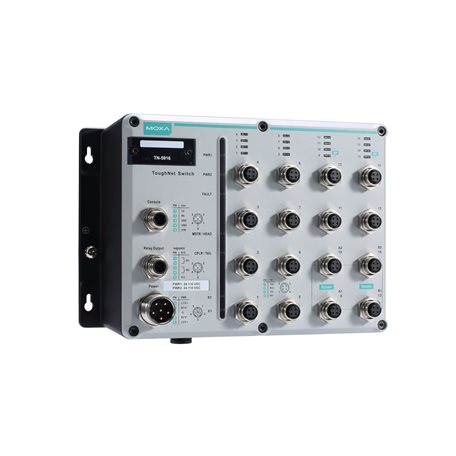

MOXA Secure Router TN-5916-WV-CT-T
Part Number: TN-5916-WV-CT-T
TN-5900 Series Features and Benefits
Designed for rolling stock backbone networks
Dual bypass relay
Isolated power input range from 24 to 110 VDC
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range
Turbo Ring and RSTP/STP for network redundancy
The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.
The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.
Input/Output Interface
Alarm Contact Channels
2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
12
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)
4
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.3 for 10BaseT
IEEE 802.3ad for Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
