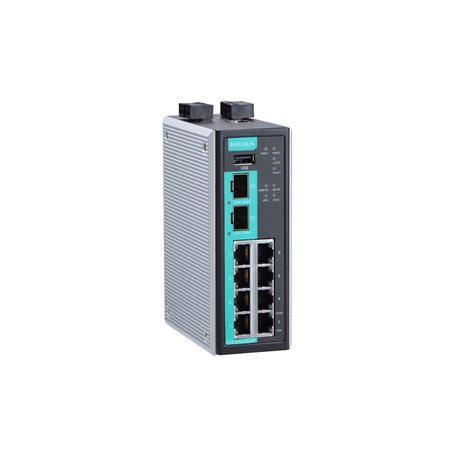

MOXA Secure Router EDR-810-VPN-2GSFP
Part Number: EDR-810-VPN-2GSFP
EDR-810 Series Features and Benefits
8+2G all-in-one firewall/NAT/VPN/router/switch
Secure remote access tunnel with VPN
Stateful firewall protects critical assets
Inspect industrial protocols with PacketGuard technology
Easy network setup with Network Address Translation (NAT)
RSTP/Turbo Ring redundant protocol enhances network redundancy
-40 to 75°C operating temperature range (-T model)
Security features based on IEC 62443/NERC CIP
Check firewall settings with intelligent SettingCheck feature
The EDR-810 is a highly integrated industrial multiport secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an electronic security perimeter for the protection of critical cyber assets including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDR-810 Series includes the following cybersecurity features:
-
Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.
-
VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.
Input/Output Interface
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
8
100/1000BaseSFP Slots
2
Standards
IEEE 802.1Q for VLAN Tagging
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
