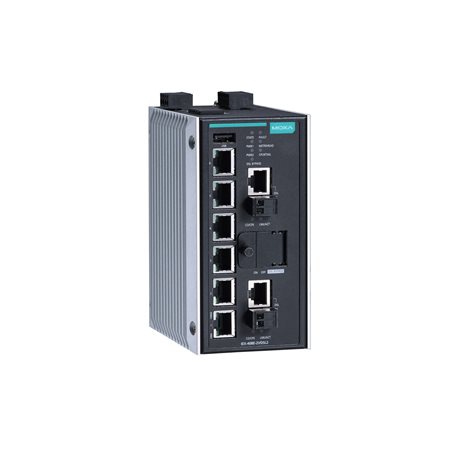

MOXA Layer 3 Managed Switch IEX-408E-2VDSL2
Part Number: IEX-408E-2VDSL2
IEX-408E Series Features and Benefits
VDSL2 high-speed long-distance copper connections; up to 300 m at 100 Mbps and up to 3 km at 1 Mbps over twisted-pair copper wires
Automatic CO/CPE negotiation reduces configuration time
Turbo Ring and Turbo Chain on both Fast Ethernet and VDSL2 ports for fast recovery
Controllable bypass mode on VDSL2 ports gives higher availability in a daisy-chain topology
Flexible deployment with 2-pin or RJ11/45 connector on VDSL2 ports
Easy network management by web browser, Telnet/serial console, Windows utility, ABC-02, and MXview
The IEX-408E-2VDSL2 is an industrial managed Ethernet extender switch for establishing long-distance Ethernet transmissions over twisted-pair copper wiring. IEX-408E-2VDSL2 units can easily be linked in series to form a long-distance multi-drop configuration, with one IEX-408E-2VDSL2 unit located at each drop-point. Adjacent drop points can be separated theoretically by up to 3 km, with a transmission speed of 1 Mbps achieved using a VDSL2 connection (with a connection distance of 300 m, a transmission speed of 100 Mbps can be theoretically achieved). Each IEX-408E-2VDSL2 unit provides six 10/100BaseT(X) and two DSL ports, giving users an incredible amount of flexibility for linking together a wide variety of devices separated by vast distances.
Ethernet redundancy is provided by Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, and a controllable bypass solution on the DSL ports that increases system reliability and the availability of your network. The IEX-408E-2VDSL2 Series also supports advanced management and security features. It is the perfect solution for reducing the cost of deploying new network cable installations using existing twisted-pair copper wiring to extend copper cable networks beyond the conventional distance limitations imposed by the Ethernet protocol.
The wide operating temperature range (-40 to 75°C), and dual power inputs make it ideal for deployment in industrial applications such as ITS, rail wayside, oil and gas, mining, factory automation, and process automation applications. In addition, its compact design that includes a DIN-rail, makes it ideal for installation in places with space limitations such as a cabinet.
To simplify configuration, the IEX-408E-2VDSL2 uses CO/CPE automatic negotiation (the factory default setting). The device will automatically assign CPE status to one of each pair of IEX devices. In addition, advanced management and monitoring functionalities can be performed through a NMS, including a virtual panel, which can improve the user experience by enabling quick troubleshooting.
Input/Output Interface
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons
Reset button
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
6
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Port, RJ-11 (RJ45 connector) or Detachable 2-Contact Terminal Block
2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
ITU G.993.2 for very high speed digital subscriber line transceivers 2
