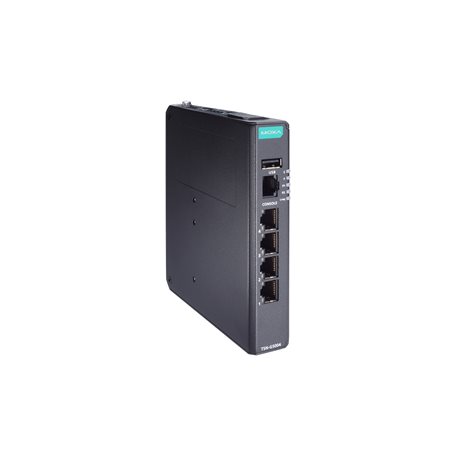

MOXA Layer 2 Managed Switch TSN-G5004
Part Number: TSN-G5004
TSN-G5004 Series Features and Benefits
Compact and flexible housing design to fit into confined spaces
Web-based GUI for easy device configuration and management
Security features based on IEC 62443
IP40-rated metal housing
The TSN-G5004 Series switches are ideal for making manufacturing networks compatible with the vision of Industry 4.0. The switches are equipped with 4 Gigabit Ethernet ports. The full Gigabit design makes them a good choice for upgrading an existing network to Gigabit speed or for building a new full-Gigabit backbone for future high-bandwidth applications. The compact design and user-friendly configuration interfaces provided by the new Moxa web GUI make network deployment much easier. In addition, future firmware upgrades of the TSN-G5004 Series will support real-time communication using standard Ethernet Time-Sensitive Networking (TSN) technology.
Ethernet Interface
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
10/100/1000BaseT(X) Ports (RJ45 connector)
4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
