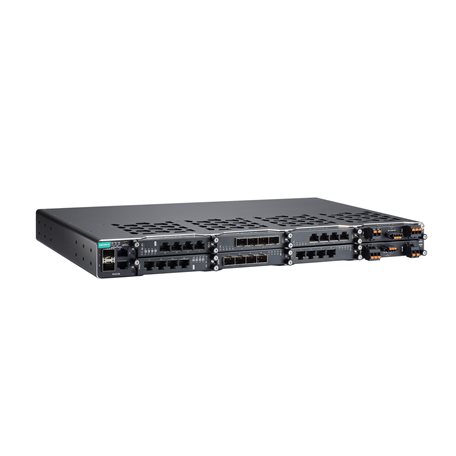

MOXA Layer 2 Managed Switch PT-G7728
Part Number: PT-G7728
PT-G7728 Series Features and Benefits
IEC 61850-3 Edition 2 Class 2 compliant
Hot-swappable interface and power modules for continuous operation
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
IEEE 1588 hardware time stamp supported
The PT-G7728 modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7728 Series is designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device.
The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)
2
100/1000BaseSFP Ports
2
Module
6
Slot Combination
See the LM-7000H datasheet for Ethernet and PoE+ modules information
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for flow control
