MOXA Layer 2 Managed Switch IM-6700A Module Series
Part Number: IM-6700A
IM-6700A Module Series Features and Benefits
Modular design lets you choose from a variety of media combinations
IM-6700A fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability. The modular design of the IKS-6700A Series ensures that the switches meet multiple application requirements.
Models:
IM-6700A-2MSC4TX, IM-6700A-2MST4TX, IM-6700A-2SSC4TX, IM-6700A-4MSC2TX, IM-6700A-4MST2TX, IM-6700A-4SSC2TX, IM-6700A-6MSC, IM-6700A-6MST, IM-6700A-6SSC, IM-6700A-8PoE, IM-6700A-8SFP, IM-6700A-8TX

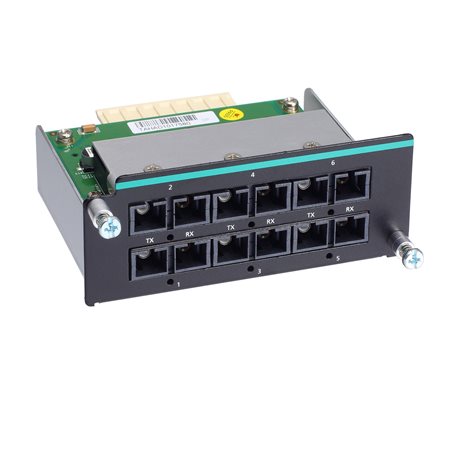

100BaseFX Ports (multi-mode SC connector)
IM-6700A-2MSC4TX: 2
IM-6700A-4MSC2TX: 4
IM-6700A-6MSC: 6

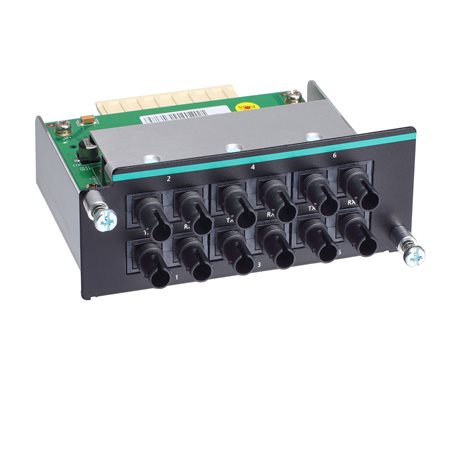

100BaseFX Ports (multi-mode ST connector)
IM-6700A-2MST4TX: 2
IM-6700A-4MST2TX: 4
IM-6700A-6MST: 6
100BaseFX Ports (single-mode SC connector)
IM-6700A-2SSC4TX: 2
IM-6700A-4SSC2TX: 4
IM-6700A-6SSC: 6

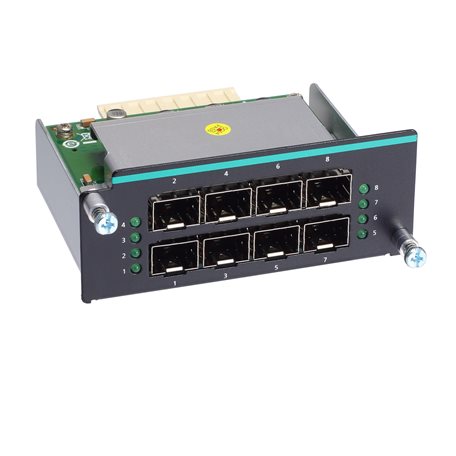

100BaseSFP Slots
IM-6700A-8SFP: 8

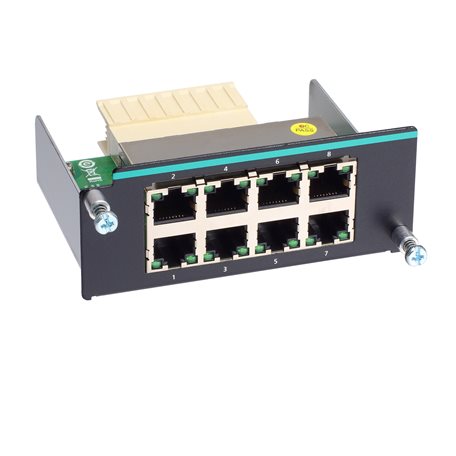

10/100BaseT(X) Ports (RJ45 connector)
IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 2
IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 4
IM-6700A-8TX: 8
Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)
IM-6700A-8PoE: Auto negotiation speed, Full/Half duplex mode
Standards
IM-6700A-8PoE: IEEE 802.3af/at for PoE/PoE+ output
Optical Fiber
