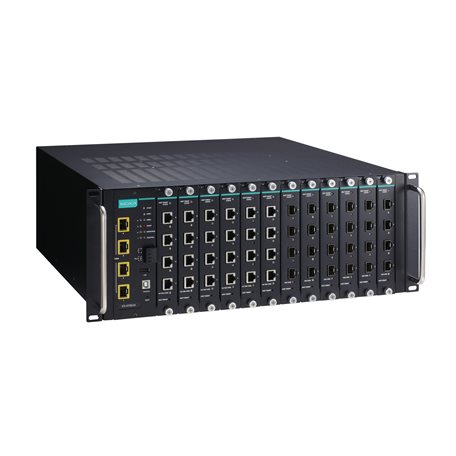

MOXA Layer 2 Managed Switch ICS-G7852A-4XG-HV-HV
Part Number: ICS-G7852A-4XG-HV-HV
ICS-G7852A Series Features and Benefits
Up to 48 Gigabit Ethernet ports plus 4 10G Ethernet ports
Up to 52 optical fiber connections (SFP slots)
Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
Fanless, -10 to 60°C operating temperature range
Modular design for maximum flexibility and hassle-free future expansion
Hot-swappable interface and power modules for continuous operation
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Isolated redundant power inputs with universal 110/220 VAC power supply range
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7852A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10 Gigabit Ethernet ports.
The ICS-G7852A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Input/Output Interface
Alarm Contact Channels
Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs
+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Ethernet Interface
10GbE SFP+ Slots
4
Slot Combination
12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots)
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3ae for 10 Gigabit Ethernet
