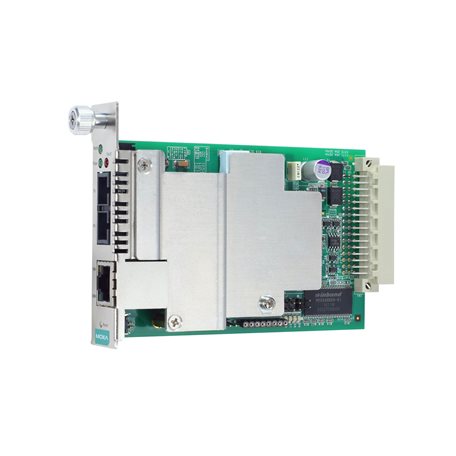

MOXA Ethernet Converter Module CSM-400-1224-T
Part Number: CSM-400-1224-T
CSM-400 Module Series Features and Benefits
LFP (Link Fault Pass-Through) and FEF (Far End Fault)
Supports store-and-forward mode and pass-through mode
Auto-negotiation
Supports IEEE 802.3AH OAM protocol
Plug and play
Hot-swappable
IP-based remote management
Supports WDM type modules
The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
1
100BaseFX Ports (single-mode SC connector)
1
Optical Fiber
Magnetic Isolation Protection
1.5 kV (built-in)
Standards
IEEE 802.3u for 100BaseT(X) and 100BaseFX
