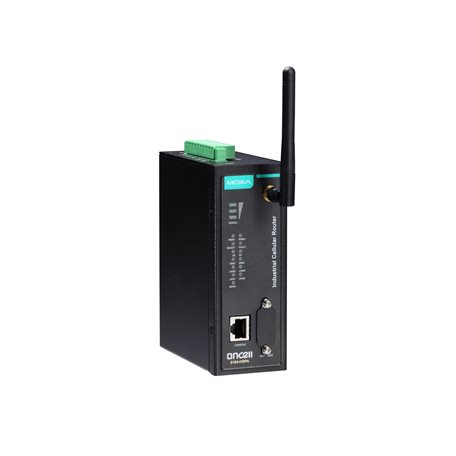

MOXA Cellular Router OnCell 5104-HSPA-T
Part Number: OnCell 5104-HSPA-T
OnCell 5104 Series Features and Benefits
Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
Cellular WAN and Ethernet WAN backup mechanism for a complete path redundancy
Primary and secondary power inputs for power source redundancy
Cellular link redundancy with dual-SIM GuaranLink support
DIN-rail housing and wall-mountable housing
Connect to 4 10/100BaseT(X) devices over an integrated VPN
2 digital inputs and 1 relay output
Centralized private IP management software with OnCell Central Manager
The OnCell 5104-HSPA high-performance industrial-grade cellular routers allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. It provides the functionality of a cellular router, firewall, and switch in one device and is integrated with Moxa’s GuaranLink function to ensure zero data loss and on-demand cellular communication.
The OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5104-HSPA uses 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation protection to keep your system safe from unexpected electrical discharges.
Cellular Interface
Cellular Standards
GSM, GPRS, EDGE, UMTS, HSPA
Band Options
UMTS/HSPA 800 MHz / 850 MHz / AWS MHz / 1900 MHz / 2100 MHz
Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
HSPA Data Rates
14.4 Mbps DL, 5.76 Mbps UL
EDGE Data Rates
237 kbps DL, 237 kbps UL
EDGE Multi-Slot Class
12
EDGE Terminal Device Class
Class B
GPRS Data Rates
85.6 kbps DL, 85.6 kbps UL
GPRS Multi-Slot Class
12
GPRS Terminal Device Class
Class B
No. of SIMs
2
SIM Control Voltage
3 V
Cellular Antenna Connectors
1 SMA female
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
5
Total Port Count
5
Highest Speed
100M
Note
One of the Ethernet ports is a WAN port.
