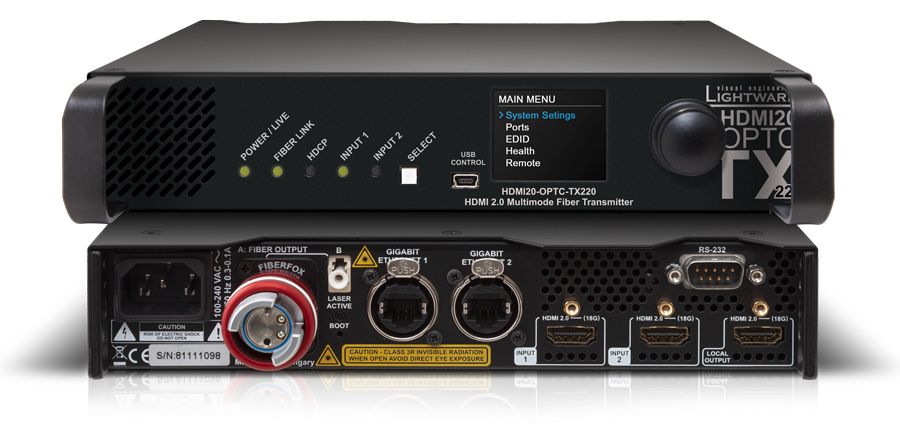

Lightware HDMI20-OPTC-TX220-Fox HDMI 2.0 Full 4K Fiber Optical Extender with Gigabit Ethernet

Part Number: 91550001



The HDMI20-OPTC-TX/RX220-Fox is a HDMI 2.0 compatible extender pair with a Fiberfox optical connector for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. Video and Ethernet signals are transferred over a single optical line.



Highlighted Features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096×2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Advanced EDID Management
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Built-in universal power supply



Click here to download datasheet from Lightware.
