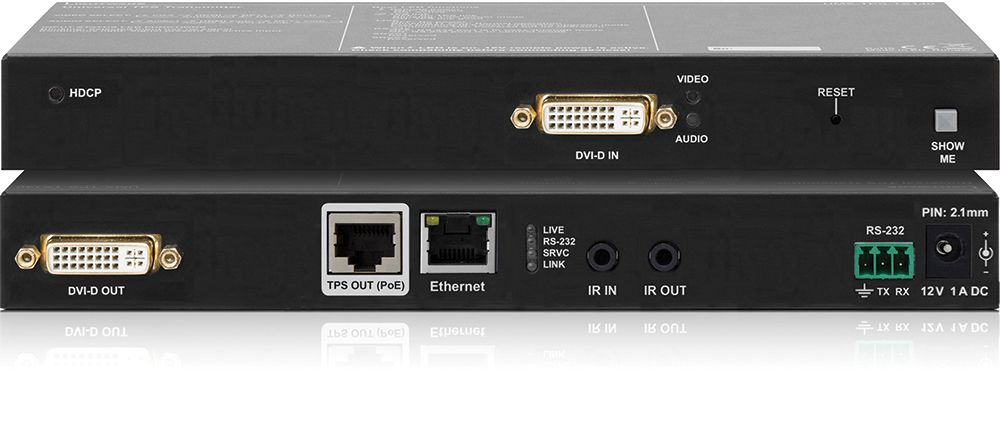

Lightware DVI-HDCP-TPS-TX210 TPS (HDBaseT™) Extender for DVI with Local Monitor Out
Part Number: 91540015
The DVI-HDCP-TPS-TX220 is a flagship model in the Lightware TPS (HDBaseT™ Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT cable. The extender was designed to handle DVI, HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI Embedded Audio up to eight channel PCM or HBR audio.
Highlighted Features
- Built-in Event Manager control automation feature
- 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- Bi-directional RS-232 and IR extension (pass-through and control)
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
