LANTRONIX PCIe 10 Gigabit Ethernet Fiber Network Interface Card N-TGE-SFP-02 Series

Part no: N-TGE-SFP-02

LANTRONIX PCIe 10 Gigabit Ethernet Fiber Network Interface Card N-TGE-SFP-02 Series

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

LANTRONIX PCIe 10 Gigabit Ethernet Fiber Network Interface Card N-TGE-SFP-02 Series

Part number: N-TGE-SFP-02

N-TGE-SFP-02 Series

Features

  • High bandwidth 10Gbps network speed
  • Supports 1Gbps SFPs with DMI
  • Supports IEEE 802.3x Full-Duplex flow control
  • IPv4 and IPv6
  • Compliant with PCIe 3.0×8 interface
  • Supports Jumbo Frames – 9014 and 4088 byte options in Windows>Advanced Properties tab
  • Supported transmission distance based on the SFP/SFP+ modules and fiber type used (1Gbps SFP modules must support DMI)
  • Supports IEEE 802.3ad Link Aggregation (LACP)
  • IEEE 802.1Q VLAN support
  • IEEE 802.1p QoS
  • Checksum offload (IP/TCP/UDP)
  • Teaming
    • Adapter Fault Tolerance (AFT)
    • Adaptive Load Balancing (ALB)
    • IEEE 802.3ad Dynamic Link Aggregation
    • Switch Fault Tolerance (SFT)
    • Static Link Aggregation (SLA)
    • Virtual Machine Load Balancing (VMLB)
  • Virtualization/Hypervirtualization
  • SR-IOV
  • RSS/TSS
  • MSI/MSI-X
  • LED status indicator
  • Supports PXE remote, remote boot
  • RoHS compliance

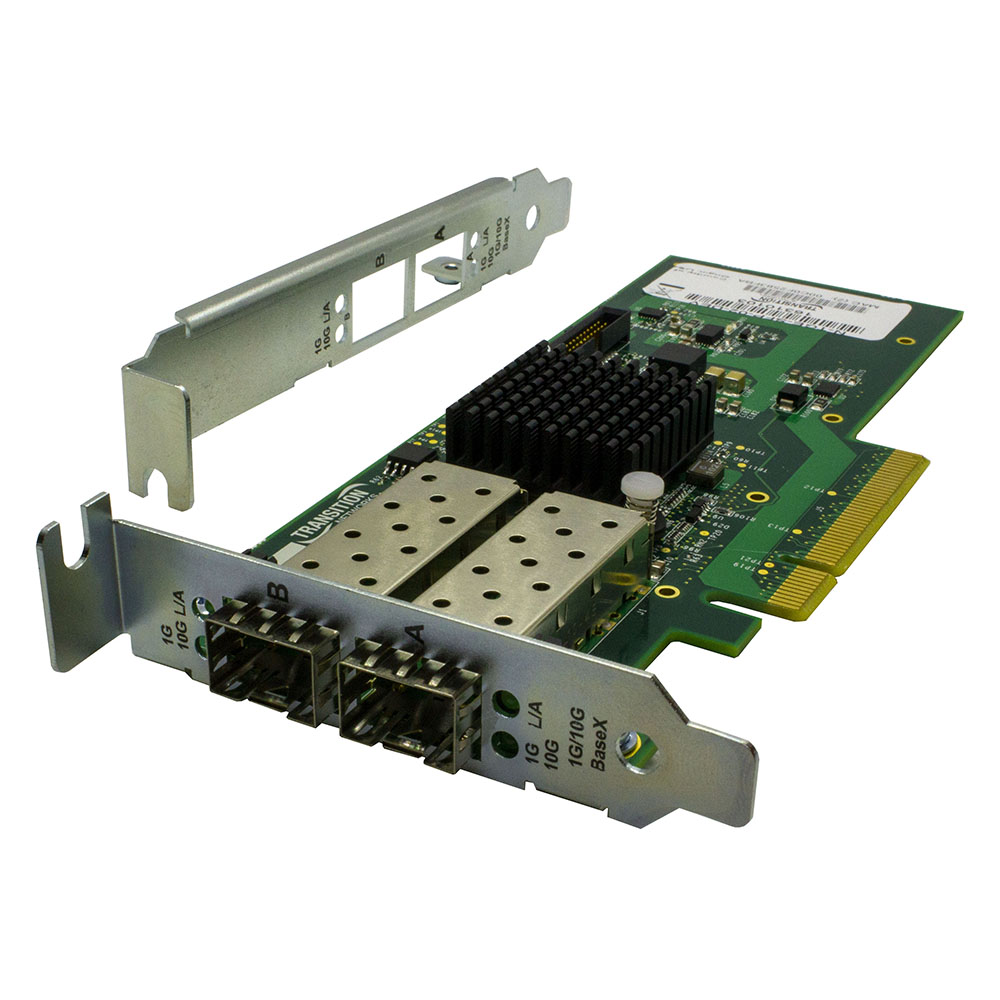

  • Standard bracket attached, low-profile bracket included
