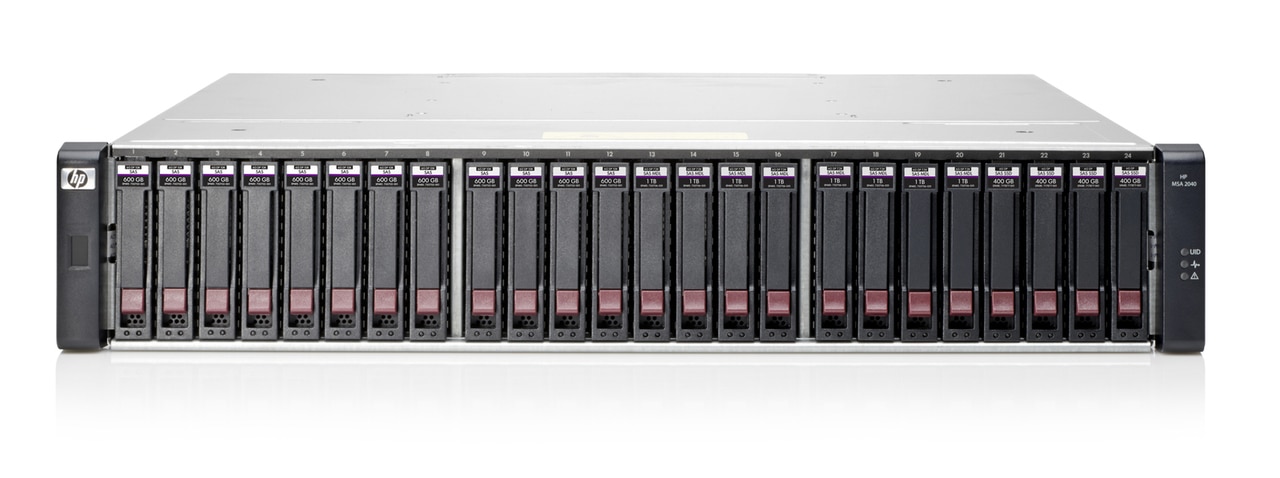

HPE MSA 2040 ES SFF Chassis
Part Number: K2R81A
The HP MSA 2040, a high-performance storage array designed for entry-level HP customers desiring 8 and/or 16 Gb Fiber Channel connectivity with 4 host ports per controller. This excellent MSA 2040 storage array provides an excellent value for customers needing performance balanced with price to support initiatives such as consolidation and virtualization. The HP MSA 2040 storage system brings the performance benefits of SSD drives to MSA array family customers.
Brand
HP
General
Device Type
Storage enclosure
Enclosure Type
Rack-mountable – 2U
Chassis
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
24
Supported Drives
SAS-2
Storage
Max Supported Capacity
43 TB
Maximum LUNs
512
Processor
Type
No CPU
Hard Drive
Type
No HDD
Expansion / Connectivity
Expansion Bays
24 (total) / 24 (free) – 2.5″ SFF
System Requirements
OS Required
HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012
Miscellaneous
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A
Environmental Standards
ENERGY STAR Certified
Yes
Power
Power Device
2 x internal power supply – hot-plug
Max Supported Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V – 50/60 Hz
