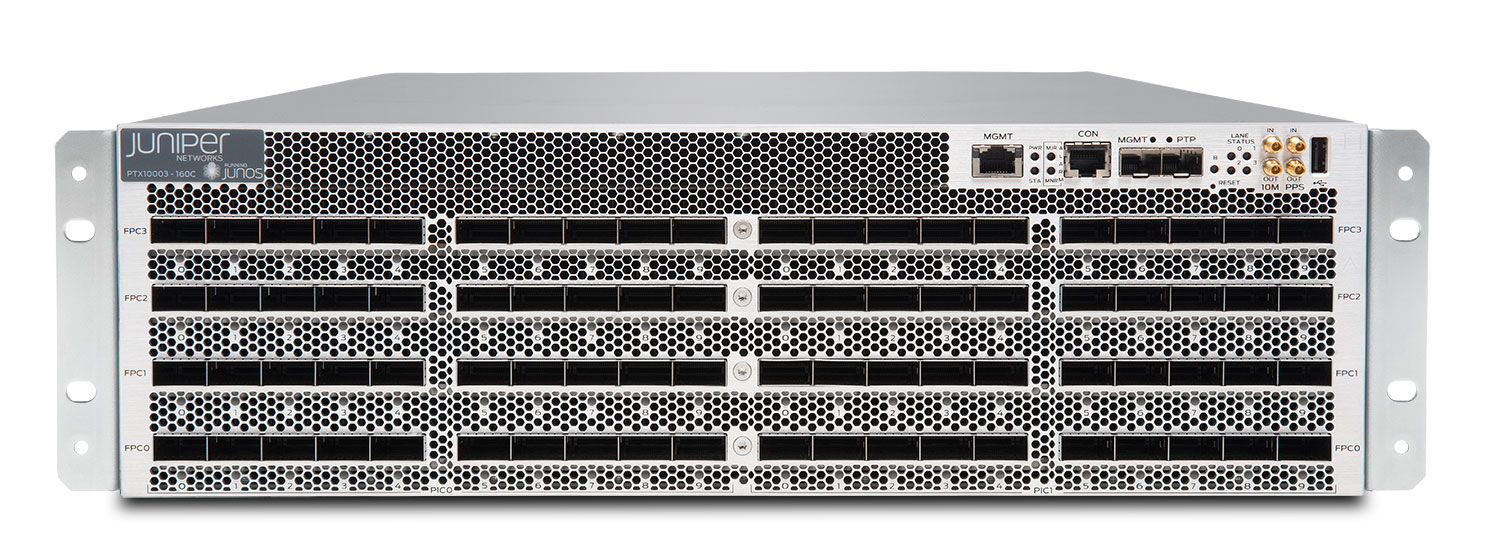

JUNIPER PTX Series Router PTX10003
Part Number: PTX10003
Overview
The scalable PTX10003 Packet Transport Router delivers critical core routing functions on demand while providing high-density 10GbE, 40GbE, 100GbE, 200GbE, and 400GbE interfaces for distributed core networks and network applications. The router’s compact form factor and power efficiency meets the demands of Internet service providers, cloud providers, cable multiple service operators (MSOs), and high-volume content providers. The PTX10003 offers secure transit, peering, and full IP/MPLS and SPRING applications in the data center edge and content delivery network (CDN) core.
Occupying only 3 U, the PTX10003 is the industry’s first fixed-configuration core router to support 400GbE. It uses a rich IP/MPLS feature set to organically distribute transit points throughout your network without sacrificing performance or deployability, two factors on which your TCO pivots.
The PTX10003 delivers unprecedented power efficiency of 0.2 W per gigabit. It comes in 8-Tbps and 16-Tbps models, both fixed-configuration in a 3 U form factor:
PTX10003 8 Tbps has flexible interface configuration options, with 40 universal multirate QSFP-DD for 100GE/400GE/FlexE to support 160x 10GbE ports (QSFP+ breakout), 40x 40GbE ports (QSFP+), 40x 100GbE ports (QSFP28), 80x 100GbE ports (QSFP28-DD 2x100GbE), 32x 200GbE ports (QSFP28-DD), or 16x 400GbE ports (QSFP56-DD).
PTX10003 16 Tbps has flexible interface configuration options, with 80 universal multirate QSFP-DD for 100GE/400GE/FlexE to support 320x 10GbE ports (QSFP+ breakout), 80x 40GbE ports (QSFP+), 80x 100GbE ports (QSFP28), 160x 100GbE ports (QSFP28-DD 2x100GbE), 64x 200GbE ports (QSFP28-DD), or 32x 400GbE ports (QSFP56-DD).
The PTX10003 is powered by our custom ExpressPlus silicon, providing predictable IP/MPLS packet performance and functionality, along with inline AES-256 MACsec encryption on all interfaces.
Specifications
System Capacity PTX10003 8 Tbps
PTX10003 16 Tbps
Slot Capacity N/A
Chassis Per Rack 14
Dimensions (W x H x D) PTX10003 8 Tbps: 17.4 x 5.25 x 31 in (44.2 x 13.3 x 78.7 cm)
PTX10003 16 Tbps: 17.4 x 5.25 x 31 in (44.2 x 13.3 x 78.7 cm)
Maximum Weight PTX10003 8 Tbps: 88 lb (40 kg)
PTX10003 16 Tbps: 110 lb (50 kg)
Mounting Front rack mount
Power System Rating (Max) PTX10003 8 Tbps: 2500 W (AC, DC), 8525 BTU/hr
PTX10003 16 Tbps: 4000 W (AC, DC) 13,640 BTU/hr
Operating Temperature 32° to 115° F (0° to 46° C)
Humidity Relative humidity operating: 5 to 90% (noncondensing)
Altitude Up to 10,000 ft (3048 m)
10G/40G/100G/200G/400G PTX10003 8 Tbps: 160/40/80/32/16
PTX10003 16 Tbps: 320/80/160/64/32
