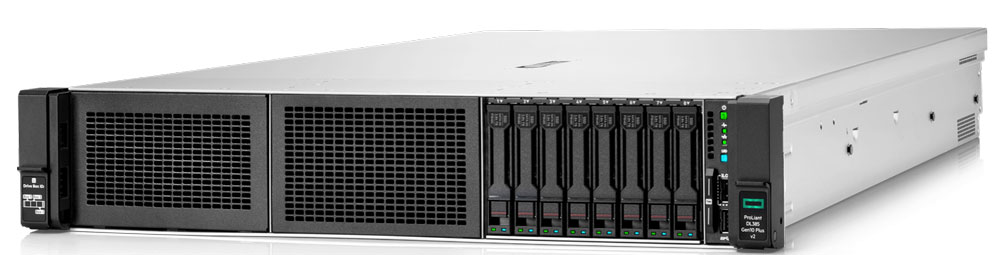

HPE ProLiant DL345 Gen10 Plus server
Part Number: dl345gen10+
Do you need a single socket server with a 2U rack storage capacity to address your data intensive workloads?
Processor Type AMD
Processor Family 3rd Generation AMD EPYC™ 7000 Series Processor
Processor Core Available Up to 64, depending on processor
Processor Cache Installed Up to 256 MB L3 cache, depending on processor model
Maximum Memory 2.0 TB with 128 GB DDR4
Memory Slots 16
Memory Type HPE DDR4 SmartMemory
Memory Protection Features ECC
Drive Supported 8 or 12 LFF SAS/SATA with 2 SFF rear drive optional 8 or 24 SFF SAS/SATA with 2 SFF rear drive optional, 24 SFF NVMe Front bay with 2 SFF rear drive optional
Network Controller Choice of optional OCP plus standup, depending on model
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
Power Supply Type 2 Flexible Slot power supplies maximum, depending on model
Expansion Slots 4 maximum, for detailed descriptions refer to the QuickSpecs
Storage Controller HPE Smart Array SAS/SATA Controllers or Tri-Mode Controllers, refer to QuickSpecs for more details
Warranty Standard Statement 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support.
Processor Name AMD EPYC™ 7000 Series Processors
Processor Number 1
Processor Speed 4.0 GHz maximum, depending on processor
Standard Memory 2 TB with 16 x 128 GB RDIMMs
Form Factor 2U
Weight (imperial) 36.00 lb
Weight (metric) 16.33 kg
Product Dimensions (imperial) 3.44 x 17.54 x 28 in
Product Dimensions (metric) 8.75 x 44.54 x 71.1 cm
