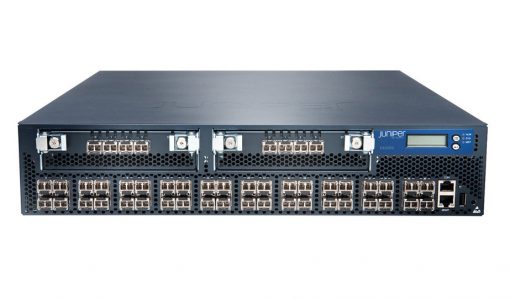

Juniper EX4500 Network Switches
Part Number: EX4500
Juniper Networks EX4500 Ethernet Switches provide high-density 10-gigabit ports for aggregation layer and data center top-of-rack deployments, and provide options for data center optimized airflow (hot aisle/cold aisle). Whilst deployable on their own, the EX4500 can also support Juniper’s Virtual Chassis technology, which allows up to 10 interconnected EX4500, EX4550 and EX4200 switches to operate as a single logical device.
The following eight models available with notable variations in power supply current and airflow direction.
Juniper Networks EX4500 Ethernet Switch, Front to Back Airflow
| EX4500-40F-FB, | 40-port GbE/10GbE SFP/SFP+, AC PSU |
| EX4500-40F-FB- C, | 40-port GbE/10GbE SFP/SFP+, AC PSU and Converged Enhanced Ethernet (CEE) |
| EX4500-40F-DC-C, | 40-port GbE/10GbE SFP/SFP+, DC PSU, Supports CEE |
| EX4500-40F-VC1-DC, | 40-port GbE/10GbE SFP/SFP+, DC PSU, Virtual Chassis Module and Supports CEE |
Juniper Networks EX4500 Ethernet Switch, Back to Front Airflow
| EX4500-40F-BF, | 40-port GbE/10GbE SFP/SFP+, AC PSU |
| EX4500-40F-BF- C, | 40-port GbE/10GbE SFP/SFP+, AC PSU and Converged Enhanced Ethernet (CEE) |
| EX4500-40F-DC-C, | 40-port GbE/10GbE SFP/SFP+, DC PSU, Supports CEE |
| EX4500-40F-VC1-BF, | 40-port GbE/10GbE SFP/SFP+, AC PSU, Virtual Chassis Module and Supports CEE |
