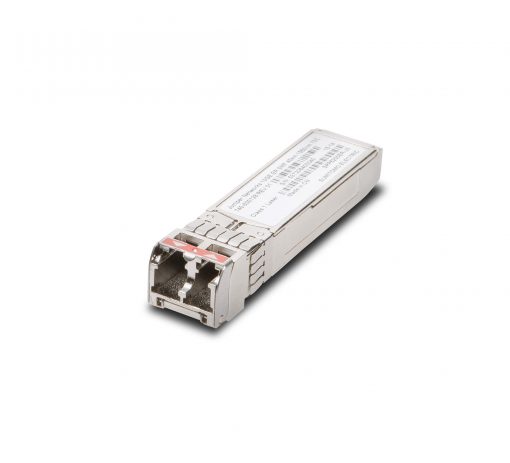

JUNIPER SFP+ 10GBASE-SR ETHERNET

Part no: EX-SFP-10GE-SR | NSN: 6030-01-678-6538

JUNIPER SFP+ 10GBASE-SR ETHERNET

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

JUNIPER SFP+ 10GBASE-SR ETHERNET

Part Number: EX-SFP-10GE-SR

Digital Diagnostic Monitoring
Transceiver temperature
Transceiver supply voltage
TX bias current
TX output power
RX received optical power
Signaling rate, each lane
10 Gbps
Transmitter fibers
Dual
Transmitter wavelengths (range)
850 nm
Transmitter output power, each lane (minimum)
–7.3 dBm
Transmitter output power, each lane (maximum)
–1 dBm
Receiver input power, each lane (minimum)
–9.9 dBm
Receiver input power, each lane (maximum)
–1 dBm
Cable type
MMF
Core size/cladding
62.5/125 µm
62.5/125 µm
50/125 µm
50/125 µm
50/125 µm
50/125 µm
Fiber grade
FDDI
OM1
–
OM2
OM3
OM4
Effective modal bandwidth
160 MHz x km
200 MHz x km
400 MHz x km
500 MHz x km
2000 MHz x km
4700 MHz x km
Distance
26 m
33 m
66 m
82 m
300 m
400 m
Operating Temperature (range)
0° C to 70° C
Storage temperature
–40° C to 85° C
